Zoro Select PlateCaster, Swivl, Polyurethane, 2 13/16"H LDA-PATH 50G-FI - main

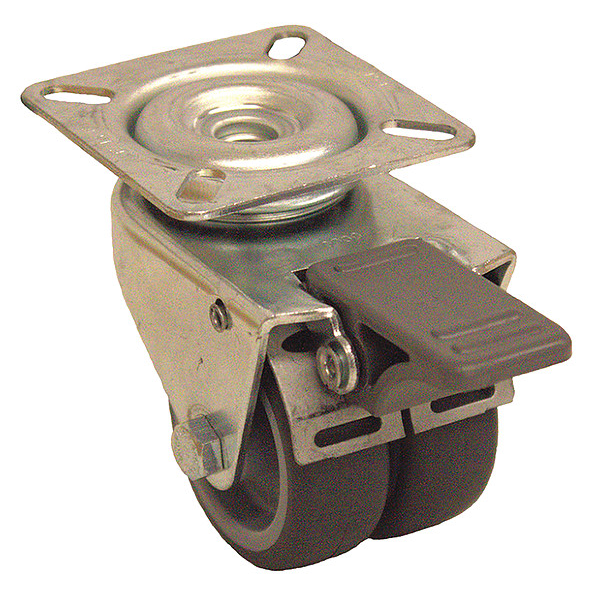

PlateCaster, Swivl, Polyurethane, 2 13/16"H

  • Mfr # LDA-PATH 50G-FI

  • Zoro # G3576472

product price: $25.75
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LDA-PATH 50G-FI
Zoro #
G3576472
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 in
Wheel Width
3/4 in
Mounting Height
2 13/16 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Plate Thickness
5/64in
Mounting Bolt Dia.
7/32 in
Swivel Radius
56 mm
Overall Height
2-51/64in
Outside Slot Spacing - Width
48 mm
Mounting Plate Width
60 mm
Inside Slot Spacing - Length
38 mm
Mounting Plate Length
60 mm
Bolt Hole Spacing - Length
1.5 in
Inside Slot Spacing - Width
38 mm
Outside Slot Spacing - Length
48 mm
For Axle Dia.
6 mm
Overall Wheel Width
3/4 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Load Rating
175 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Twin Wheel
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
2
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Caster Plate Hole Pattern
A
Extended Lead
No
Tread Color
Dark Gray
Wheel/Tread Hardness Rating
Firm
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Replacement Wheel
Mfr. No. PATH 50/8G
Standards
RoHS, ICWM
Tread
Standard
Includes Thread Guards
No
Includes
Stop-Fix Total-Lock Brake
Caster Temp. Range Available
Yes
Load Rating Range
Light-Duty
Swivel Lock Type
Total Lock
Wheel Color
Gray
Thread Guards
No
Features
Floor Protection, Reduced Swivel Forces
Frame Finish
Zinc Plated
Wheel Core Material
Polypropylene
Caster Brake Included
Yes
Load Capacity
80 kg
Series
LDA Series
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
175 lb
Compatible With
PATH 50/8G
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Hole
Brake Location
Rear
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel, Plate Caster, Load Rating 175 lb, Swivel Lock Type Total Lock, Wheel Dia. 2 in, Wheel Width 3/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Total Lock, Tread Shape Standard
