PlstcSht, GaroliteCE, 12"x12", 1"T, Brwn, Opq

Mfr # BULK-CS-GCE-49
Zoro # G7923655

78.29

Key Features

Color

Brown

Material

Garolite CE

Shape

Sheet

Plastic Width

12"

Plastic Length

12"

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: BULK-CS-GCE-49
Zoro #: G7923655
UPC #: 193005917982
Country of Origin: United States

Dimensions

Plastic Width: 12"
Plastic Length: 12"
Plastic Thickness: 1 in
Overall Length: 12 in
Overall Width: 12 in
Thickness: 1"
Width Tolerance: +/-1.000 in
Length Tolerance: +/-1.000 in
Plastic Length Tolerance: +/-1.000 in
Nominal Size: 12 in W x 12 in L
Plastic Width Tolerance: +/-1.000 in
Wire Rope Length: 12 in
Length: 12 in

Details

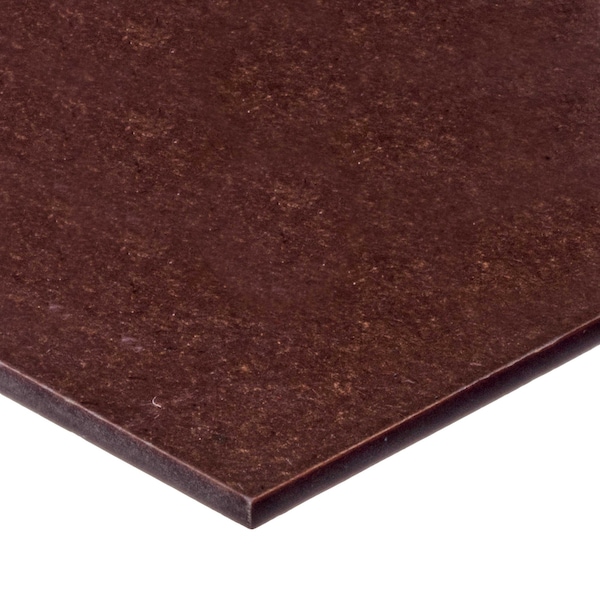

Item: CE Fiberglass Epoxy Laminate Sheet
Color: Brown
Material: Garolite CE
Shape: Sheet
Backing Type: Plain
Standards: UL 94 HB
Friction Coefficient: Not Rated
Friction Rating: Not Rated
Water Absorption Rating: Poor
Impact Strength Rating: Poor
Water Absorption: 2 %
Temperature Range: 250 Degrees F
Tensile Strength: 10,000 psi
Impact Strength: 1.7 ft-lb/in
Clarity: Opaque
Thickness Tolerance: +/-0.058 in
Tensile Strength Rating: Good
Density: 0.049 lb/cu in
Hardness: Rockwell M100
Grade: CE
Plastic Material: Garolite CE
Machinability: Good
Plastic Properties: Machinable
UV Resistant: No
Plastic Clarity: Opaque
Plastic Hardness Rating: Hard
Max. Temp. (F): 250 Degrees F
Corrosion and Chemical Resistance: Fair
Plastic Thickness Tolerance: +/-0.058 in
Plastic Density: 0.049 lb/cu in
Operating Temp. Range: 0 Degrees to 250 Degrees F
Plastic Color: Brown
Wear Factor: Fair
Plastic Hardness: Rockwell M100
Min. Temp. (F): 0 Degrees F
Maximum Temperature: 250 Degrees F
Minimum Temperature: 0 Degrees F
Hardness Rating: Hard
Grouping: Sheet Stock

Description

CE Fiberglass Epoxy Laminate Sheet, Material Fiberglass Epoxy Laminate, Color Brown, Clarity Opaque, Thickness 1 in, Overall Length 12 in, Overall Width 12 in, Tensile Strength 10,000 psi, Maximum Temperature 250 Degrees F, Minimum Temperature 0 Degrees F, Corrosion and Chemical Resistance Fair, Hardness Rockwell M100, Thickness Tolerance +/-0.058 in, Impact Strength 1.7 ft-lb/in, Standards UL 94 HB, Friction Rating Not Rated, Grade CE, Grouping Sheet Stock, Hardness Rating Hard
