  6. Plte Caster, Rgd, Poly, 6 in., 1250 lb.

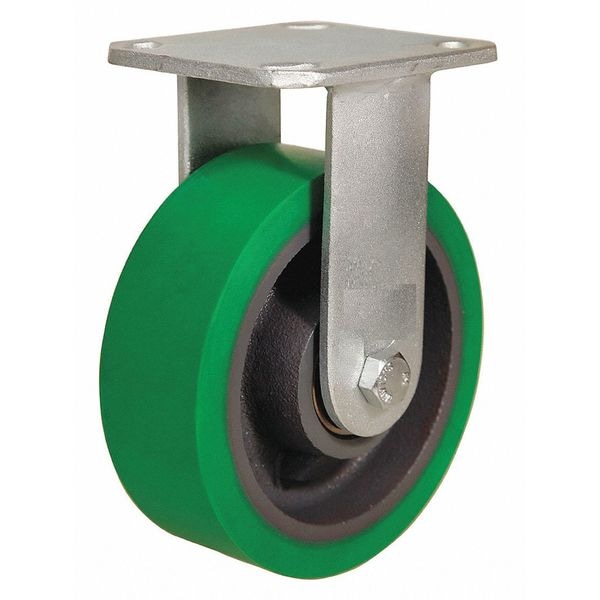

Zoro Select Plte Caster, Rgd, Poly, 6 in., 1250 lb. 5VG64 - main

Plte Caster, Rgd, Poly, 6 in., 1250 lb.

  • Mfr # 5VG64

  • Zoro # G1984613

product price:  $65.49
/ea

Key Features

Extended Lead
No
Caster Brake Included
No
Frame Finish
Zinc Plated
Core Color
Gray
Includes
Spanner Bushing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5VG64
Zoro #
G1984613
UPC #
190735899441
Country of Origin
India

Dimensions

Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Overall Height
7-1/2in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
1/4in

Details

Extended Lead
No
Caster Brake Included
No
Frame Finish
Zinc Plated
Core Color
Gray
Includes
Spanner Bushing
Load Rating
1250 lb
Thread Guards
No
Non-Marking
Yes
Number of Wheels
1
Caster Frame Material
Steel
Standards
ANSI ICWM
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Replacement Wheel
4DU68
Item
Plate Caster
Caster Temp. Range Available
Yes
Features
Chemical and Mechanical Lock of Tread to The Core, Donut Tread, Ergonomic Rolling Wheel, Reduces Noise Output, Reduces Push/Pull Forces
Wheel Color
Green
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
3 in x 3 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel Core Material
Iron
Caster Brake Type
No Brake
Number of Mounting Holes
4
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Swivel Construction
Kingpinless
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
System of Measurement
Inch
Load Capacity - Maximum
1,250 lb
Wheel Hardness Rating
90 Shore A
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
