  11. Pneumatic Caster, 165 lb. Load, Rigid

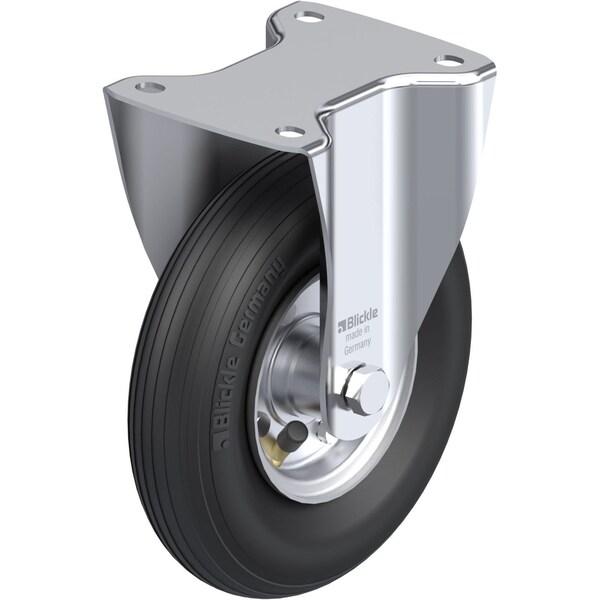

Zoro Select Pneumatic Caster, 165 lb. Load, Rigid B-P 200R - main

Pneumatic Caster, 165 lb. Load, Rigid

  • Mfr # B-P 200R

  • Zoro # G6306863

product price: $351.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Pneumatic
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B-P 200R
Zoro #
G6306863
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/4 in
Mounting Plate Size
110 mm x 140 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
3/8 in
Hub Width
2-3/8 in
Tire Rim Dia.
4 in
Tire Thickness
2 in
Overall Height
9-1/4in
Outside Slot Spacing - Width
3.156 in
Mounting Plate Length
4 5/16 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
4.125 in
Inside Slot Spacing - Length
4.125 in
For Axle Dia.
12 mm
Inside Slot Spacing - Width
2.969 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Pneumatic
Caster Brake Type
No Brake
Load Rating
165 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel Hardness Rating
60 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
C
Frame Finish
Zinc Plated
Hub Color
Silver
Tread Color
Black
Hub Type
Centered
Caster Temp. Range Available
Yes
Ply
2
Hub Material
Steel
Tread
Ribbed
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. P 200/20-60R
Caster Brake Included
No
Load Rating Range
Light-Duty
Operating Temperature Range
-20 Degrees to 120 Degrees F
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Extended Lead
No
Wheel Type
Pneumatic
ESD Conductive
No
Load Capacity
75 kg
Series
B Series
Wheel Core Material
Pressed Steel
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity - Maximum
165 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel

Description

Rigid, Plate Caster, Load Rating 165 lb, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
