Shop ZORO SELECT

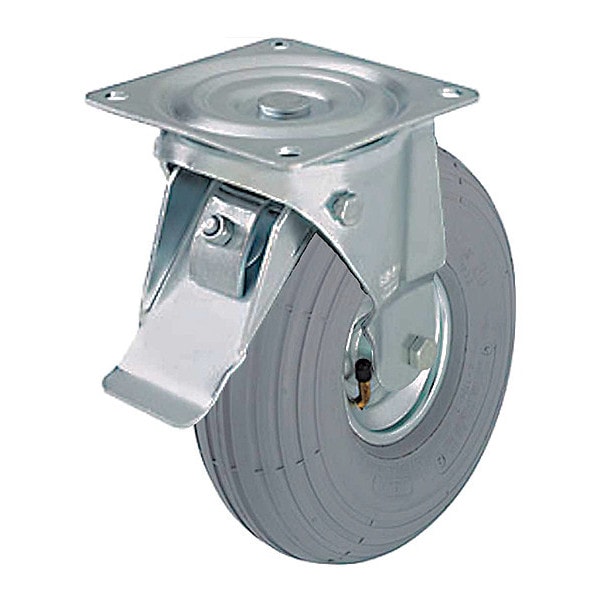

Pneumatic Caster, 220 lb. Load Rating

  • Mfr # L-P 220R-ST-SG

  • Zoro # G1617601

product price:  $147.99
/ea
Free Shipping & Returns

Key Features

Application
Retail, Industrial, Commercial
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-P 220R-ST-SG
Zoro #
G1617601
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
3/8 in
Swivel Radius
177 mm
Hub Width
2-61/64"
Wheel Dia.
8 11/16 in
Tire Rim Dia.
4 in
Tire Thickness
2 5/16 in
Overall Height
10-1/32"
Wheel Width
2 9/16 in
Mounting Plate Size
110 mm x 140 mm
Mounting Height
10 1/4 in
Overall Wheel Width
2 9/16 in
Bolt Hole Spacing - Length
4.125 in
Inside Slot Spacing - Width
75 mm
Mounting Plate Width
110 mm
Outside Slot Spacing - Width
80 mm
Mounting Plate Thickness
5/32 in
Mounting Plate Length
140 mm
For Axle Dia.
12 mm

Details

Application
Retail, Industrial, Commercial
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
Load Rating
220 lb
Number of Wheels
1
Inside Bolt Hole Spacing
2-15/16 in x 4-1/8 in
Replacement Wheel
Mfr. No. P 220/20-75R-SG
Wheel Type
Pneumatic
Caster Brake Included
Yes
Tread
Ribbed
Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Caster Plate Hole Pattern
C
Caster Brake Type
Total Lock
Hub Color
Silver
Tread Color
Gray
Ply
2
Non-Marking
No
Caster Sub-Type
Swivel
Extended Lead
No
Hub Type
Centered
Core Color
Silver
Includes
Stop-Top Total-Lock Brake
Caster Mounting Type
Plate
Item
Plate Caster
Hub Material
Steel
System of Measurement
Metric
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Roller
Swivel Raceway Type
Double Ball
Operating Temperature Range
-15 Degrees to 160 Degrees F
Number of Mounting Holes
4
Load Rating Range
Light-Duty
Wheel/Tread Material
Rubber
Swivel Construction
Kingpin
Tread Shape
Standard
Series
L Series
Load Capacity
100 kg
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel Core Material
Pressed Steel
Wheel Hardness Rating
60 Shore A
Load Capacity - Maximum
220 lb
Brake Location
Face
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 220 lb, Wheel Dia. 8 11/16 in, Wheel Width 2 9/16 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
