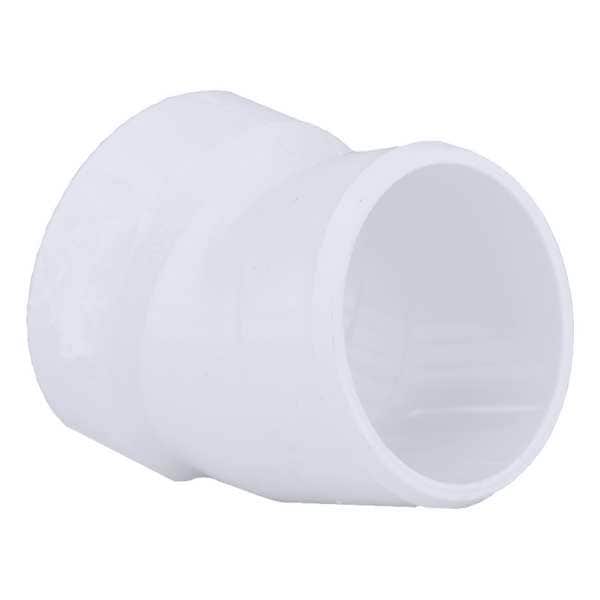

PVC 22-1/2 Degree Street Elbow, Hub x Spigot, 2 in Pipe Size

original price: $9.59
10% off
new price: $8.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size - Pipe Fitting 2 in
  • Specific Fitting Shape 22-1/2 Degrees Street Elbow
  • Pipe Fitting Material PVC
  • Fitting Connection Type Hub x Spigot
  • Fitting Schedule/Class Schedule 40
See all product information

Product Information

Dimensions

Pipe Size - Pipe Fitting 2 in
Pipe Size (Fittings) 2"
Overall Length 2 3/16 in
Fitting Side B Outside Diameter 2 11/16 in
Fitting Side B Nominal Pipe Size 2 in
For Pipe Outside Diameter 2 3/8 in
Fitting Side A Outside Diameter 2 3/8 in
Fitting Side A Nominal Pipe Size 2 in

Details

Specific Fitting Shape 22-1/2 Degrees Street Elbow
Pipe Fitting Material PVC
Fitting Connection Type Hub x Spigot
Fitting Schedule/Class Schedule 40
Max. Pressure Not Rated For Pressure Applications
Basic Pipe Fitting Shape Elbow
Basic Pipe Fitting Material Plastic
Item 22-1/2 Degree Street Elbow
Specific Pipe Fitting Shape 22-1/2 Degree Street Elbow
Pipe Fitting Schedule/Class Schedule 40
Fittings Sub-Category Elbows
Standards ASTM D1784, Cell Class 12454
Color White
Application Drain, Waste and Vent
Max. Temp. 140 Degrees F
Temp. Range -20 Degrees to 140 Degrees F
Maximum Operating Pressure Gravity Flow
Fitting Side B Gender Female
Includes Shield No
Includes Pre-Applied Thread Sealant No
Includes Plug No
Fitting Side B Type Socket
Includes Seal No
For Pipe Schedule 40
Low Lead Compliance Level Not Compliant
Fitting Side A Gender Male
Fitting Side A Type Spigot
Schedule Schedule 40

Description

22.5 Degrees Street Elbow, PVC, Schedule 40, For Pipe Schedule 40, 2 in, Male, Spigot, 2 3/8 in, 2 in, Female, Socket, 2 11/16 in, Includes Seal No, For Pipe Outside Diameter 2 3/8 in, 2 3/16 in Overall Length, Gravity Flow Maximum Operating Pressure, -20 Degrees to 140 Degrees F
