  11. Rgd Plate Caster, Glass Nylon, 5 in, 660 lb

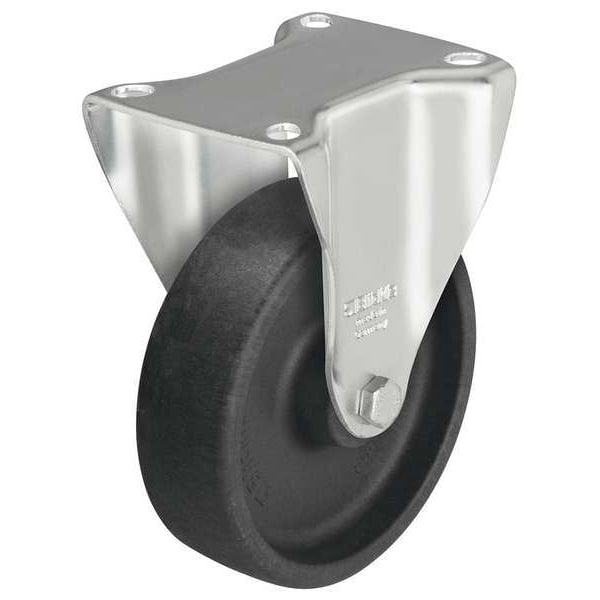

Zoro Select Rgd Plate Caster, Glass Nylon, 5 in, 660 lb BK-POHI 125G-1 - main

Rgd Plate Caster, Glass Nylon, 5 in, 660 lb

  • Mfr # BK-POHI 125G-1

  • Zoro # G7246495

product price: $52.75
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Glass Filled Nylon
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BK-POHI 125G-1
Zoro #
G7246495
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1 9/16 in
Mounting Height
6 1/8 in
Mounting Plate Size
3-3/8in x 3-15/16in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
9 mm
Overall Height
6-1/8in
Overall Wheel Width
1 9/16 in
For Axle Dia.
10 mm
Bolt Hole Spacing - Length
3.156 in
Bolt Hole Spacing - Width
2.375 in
Mounting Plate Length
3 15/16 in
Mounting Plate Width
3 3/8 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Glass Filled Nylon
Caster Brake Type
No Brake
Load Rating
660 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Wheel Color
Gray
Replacement Wheel
Mfr. No. POHI 125/15G
Caster Brake Included
No
Thread Guards
No
Caster Temp. Range Available
No
Extended Lead
No
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Application
High Temperature, Food Industry / Bakeries
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Wheel Core Material
Glass Filled Nylon
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Load Capacity
300 kg
Tread
Standard
Tread Color
Black
Series
BK Series
Resistant To
High Temperature, High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity - Maximum
660 lb
Compatible With
POHI 125/15G
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 250 Degrees C

Description

Rigid, Plate Caster, Load Rating 660 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 9/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
