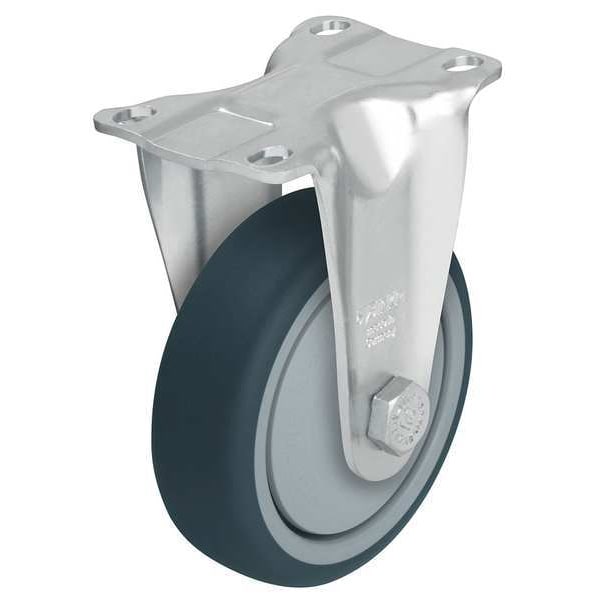

Rgd Plate Castr, Polyurthan, 4 in, 400 lb, C

  • Mfr # B-PATH 100KF-12

  • Zoro # G6611281

product price:
$
37.49
/ea

Key Features

Application
Commercial, General Purpose, Industrial, Institutional
Number of Wheels
1
Features
American Standard Plate Size
Replacement Wheel
Mfr. No. PATH 100/10K-FK
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B-PATH 100KF-12
Zoro #
G6611281
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Overall Height
5-1/8"
Mounting Bolt Dia.
9 mm
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
5 1/8 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in
Overall Wheel Width
1 1/4 in
Mounting Plate Length
3 5/8 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Width
2 1/2 in
For Axle Dia.
8 mm
Mounting Plate Thickness
3/32 in
Outside Slot Spacing - Length
3.063 in

Details

Application
Commercial, General Purpose, Industrial, Institutional
Number of Wheels
1
Features
American Standard Plate Size
Replacement Wheel
Mfr. No. PATH 100/10K-FK
Caster Frame Material
Steel
Caster Temp. Range Available
No
Core Color
Gray
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Item
Plate Caster
Wheel Color
Gray
Extended Lead
No
Load Rating
400 lb
Caster Plate Hole Pattern
C
Thread Guards
Yes
Caster Brake Included
No
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Load Rating Range
Light-Medium Duty
Includes Thread Guards
Yes
Non-Marking
Yes
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Wheel Core Material
Nylon
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Tread
Standard
Caster Mounting Type
Plate
Load Capacity
400 lb
Tread Color
Dark Gray
Standards
RoHS, ICWM
Series
B Series
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
System of Measurement
Inch
Load Capacity - Maximum
440 lb
Wheel Hardness Rating
94 Shore A
Compatible With
PATH 100/10K-FK
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Rigid, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
