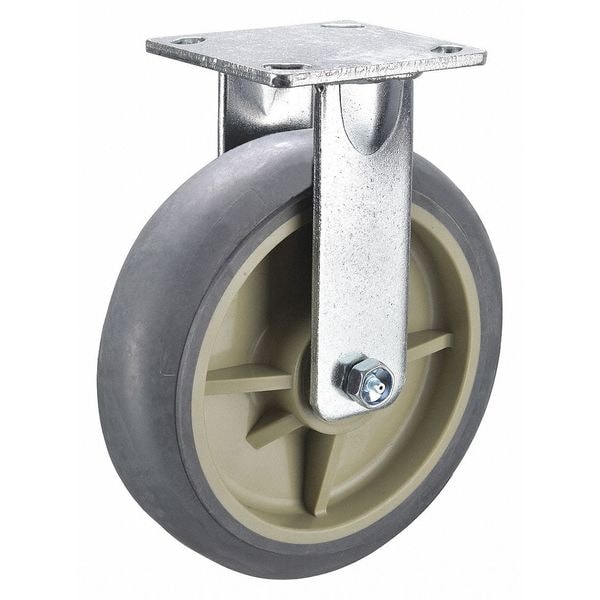

Zoro Select Rigid Plate Caster, TPR, 8 in., 675 lb. P21R-RCP080K-14 - main

Rigid Plate Caster, TPR, 8 in., 675 lb.

  • Mfr # P21R-RCP080K-14

  • Zoro # G3301864

product price:  $38.29
/ea

Key Features

Replacement Wheel
Mfr. No. XR0822808G
Core Color
Gray
Caster Sub-Type
Rigid
Overall Height
9-1/2in
Frame Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-RCP080K-14
Zoro #
G3301864
UPC #
-
Country of Origin
China

Dimensions

Overall Height
9-1/2in
Wheel Dia.
8 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
9 1/2 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in
Mounting Plate Thickness
1/4in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in

Details

Replacement Wheel
Mfr. No. XR0822808G
Core Color
Gray
Caster Sub-Type
Rigid
Frame Finish
Zinc Plated
Item
Rigid Caster
Standards
ANSI ICWM
Extended Lead
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Included
No
Caster Temp. Range Available
Yes
Number of Wheels
1
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Wheel Color
Gray
Caster Plate Hole Pattern
B
Thread Guards
No
Load Rating
600 lb
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Caster Frame Material
Steel
Wheel Core Material
Polypropylene
Wheel/Tread Material
Glass Filled Nylon
Tread Shape
Donut Tread
Number of Mounting Holes
4
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Caster Mounting Type
Plate
Load Capacity
600 lb
Tread
Crowned
Tread Color
Gray
System of Measurement
Inch
Series
P21 Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Compatible With
XR0822808G
Load Capacity - Maximum
600 lb
Wheel Hardness Rating
90 Shore A
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature Range
-45 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F

Description

Rigid, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
