  11. Rigid Plate Caster, TPR, 4 in., 300 lb.

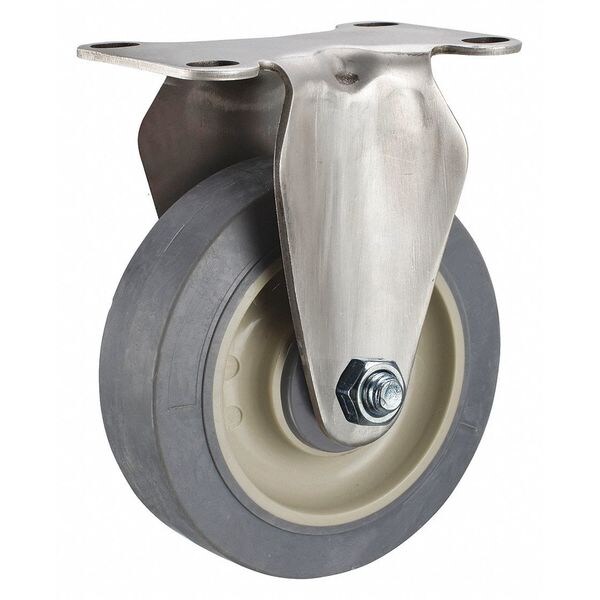

Zoro Select Rigid Plate Caster, TPR, 4 in., 300 lb. P12RX-RP040B-12-001 - main

Rigid Plate Caster, TPR, 4 in., 300 lb.

  • Mfr # P12RX-RP040B-12-001

  • Zoro # G6983961

product price: $63.89
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12RX-RP040B-12-001
Zoro #
G6983961
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/16in
For Axle Dia.
3/8 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
2.813 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
2 1/2 in
Outside Slot Spacing - Length
3.063 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
300 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Caster Temp. Range Available
Yes
Includes
Complete Caster with Thread Guard
Wheel Color
Gray
Frame Finish
Polished
Standards
RoHS, ICWM, NSF
Thread Guards
Yes
Extended Lead
No
Caster Brake Included
No
Application
Retail, Industrial, Commercial
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Load Rating Range
Light-Medium Duty
Wheel Core Material
Polypropylene
Tread
Standard
Tread Color
Gray
Replacement Wheel
Mfr. No. P-PRP-040x013/038K
Load Capacity
175 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P12X Series
ESD Conductive
No
Load Capacity - Maximum
300 lb
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
300 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 300 Degrees F

Description

Rigid, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
