  11. Rigid Plate Caster, TPR, 4 in., 350 lb.
Shop All Plate Casters
Zoro Select

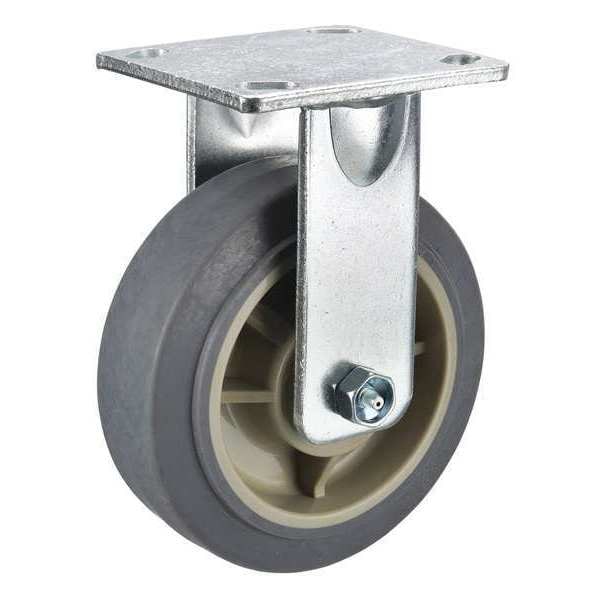

Rigid Plate Caster, TPR, 4 in., 350 lb.

product price: $19.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Sub-Type Rigid
  • Caster Product Group Rigid Caster
  • Load Rating 300 lb
  • Wheel Dia. 4 in
  • Wheel Width 2 in
See all product information

Product Information

Dimensions

Wheel Dia. 4 in
Wheel Width 2 in
Mounting Height 5 5/8 in
Mounting Plate Size 4 in x 4 1/2 in
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4" x 4-1/2"
Plate Size 4" x 4-1/2"
Overall Height 5-5/8"

Details

Item Standard Plate Caster
Caster Sub-Type Rigid
Caster Product Group Rigid Caster
Load Rating 300 lb
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Hardness Rating Firm
Wheel Bearing Type Precision Ball
Mounting Plate Bolt Hole Pattern B
Inside Bolt Hole Spacing 3 in x 3 in
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Plastic
Core Color Beige
Application Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Standards ICWM
Caster Core Material Polypropylene
Durometer 70 Shore A
Caster Plate Thickness 1/4"
Caster Plate Hole Pattern B
Caster Load Rating Range Light-Medium Duty
Caster Max. Temp. 180 Degrees F
Caster Wheel/Tread Material Thermoplastic Rubber
Plate Caster Bolt Hole Pattern B
Thread Guards No
Caster Temp. Range -45 Degrees to 180 Degrees F
Caster Swivel Lock Type No Lock Included
Caster Wheel Bearings Ball
Wheel Color Gray
Frame Material Steel
Caster Temp. Range Available Yes
Caster Brake Included No
Plate Thickness 1/4"
Caster Min. Temp. -45 Degrees F
Replacement Wheel Mfr. No. XS0420112G
Extended Lead No
Caster Wheel Shape Standard
Load Rating Range 300 to 999 lb
Tread Shape Standard
Includes Thread Guards No
Wheel/Tread Hardness 90 Shore A
Wheel/Tread Color Gray

Description

Rigid, Standard Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
