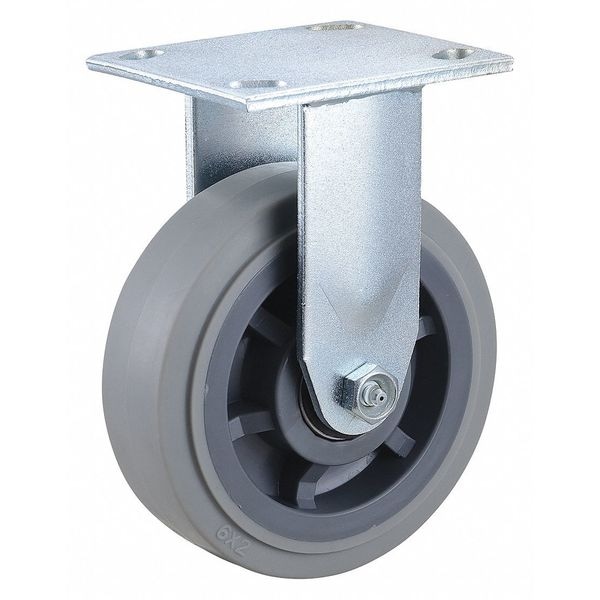

Rigid Plate Caster, TPR, 6 in., 600 lb.

  • Mfr # 18XS06228R

  • Zoro # G1800942

product price:
$
49.49
/ea

Key Features

Caster Frame Material
Steel
Wheel Color
Gray
Caster Brake Included
No
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Wheel Dia.
6 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
18XS06228R
Zoro #
G1800942
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Overall Height
7-1/2"
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
7/32in

Details

Caster Frame Material
Steel
Wheel Color
Gray
Caster Brake Included
No
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Temp. Range Available
Yes
Extended Lead
No
Replacement Wheel
Mfr. No. XS0620112G
Load Rating
600 lb
Caster Plate Hole Pattern
B
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Thread Guards
No
Item
Plate Caster
Non-Marking
Yes
Caster Sub-Type
Rigid
Core Color
Gray
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpinless
Caster Brake Type
No Brake
Wheel Core Material
Polyolefin
Load Rating Range
300 to 999 lb
Tread Shape
Standard
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Load Capacity - Maximum
600 lb
Compatible With
XS0620112G
Wheel Hardness Rating
75 Shore A
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Rigid, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
