  11. Rigid Pneumatic Cstr, 8 in, 210 lb., Silver
Zoro Select Rigid Pneumatic Cstr, 8 in, 210 lb., Silver P21R-P080B-14 - main

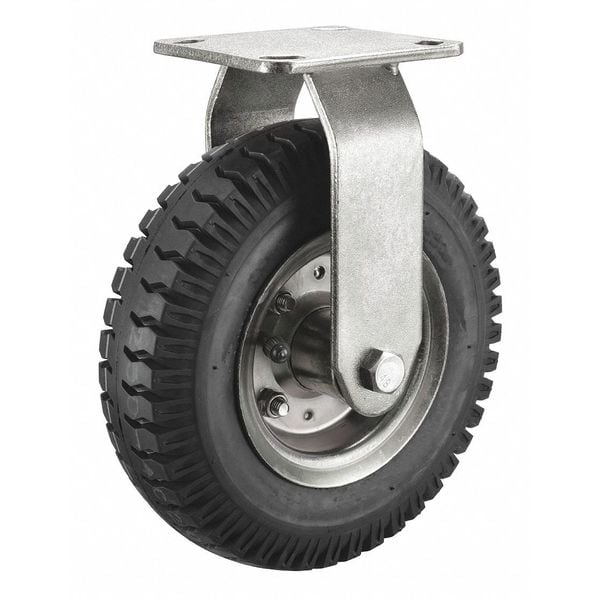

Rigid Pneumatic Cstr, 8 in, 210 lb., Silver

  • Mfr # P21R-P080B-14

  • Zoro # G6108907

product price: $48.49
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber Pneumatic
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21R-P080B-14
Zoro #
G6108907
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Hub Width
2-7/16 in
Tire Rim Dia.
4 in
Tire Thickness
1/4 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber Pneumatic
Caster Brake Type
No Brake
Load Rating
210 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Tread Color
Black
Caster Temp. Range Available
No
Ply
4
Hub Type
Symmetrical
Hub Material
Steel
Frame Finish
Zinc Plated
Tread
Ribbed
Hub Color
Silver
Load Rating Range
Light-Duty
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Soft
Application
Retail, Industrial, Commercial
Includes Thread Guards
No
Load Capacity
200 lb
Wheel Type
Pneumatic
Standards
RoHS, ICWM, NSF
Extended Lead
No
Replacement Wheel
Mfr. No. P-P-080x020/050B
Caster Brake Included
No
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel Core Material
Pressed Steel
Series
P21 Series
Load Capacity - Maximum
210 lb
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature Range
-15 Degrees To 125 Degrees F

Description

Rigid, Plate Caster, Load Rating 210 lb, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
