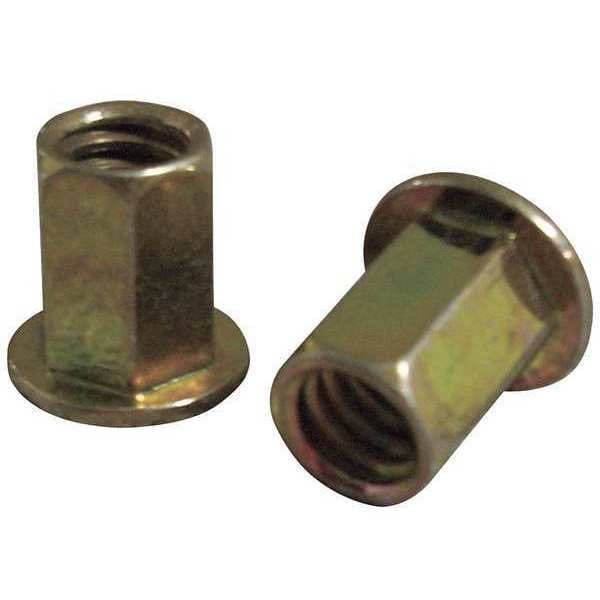

Rivet Nut, 1/4"-20 Thread Size, 0.452 in Flange Dia., 0.406 in L, Steel, 10 PK
Mfr # CFH2-2520-145T-10
Zoro # G2804420
CAD Available
product price:Â $4.19
/pk 10, $0.42/eaKey Features
CAD Drawing
Body Texture
Smooth
Flange Style
Flanged
Drill Bit Size
19/64"
Material
Steel
Finish
Clear Trivalent
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
CFH2-2520-145T-10
Zoro #
G2804420
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Thread Size
1/4"-20
Drill Bit Size
19/64"
Flange Diameter
0.452 in
Insert Diameter
0.296 in
Overall Length
0.406 in
Head Height
0.043 in
Hole Size
0.297 in
Installed Length
1/4 in
Maximum Material Thickness
0.145 in
Body Length
15/32 in
Minimum Material Thickness
0.085 in
Maximum Hole Diameter
0.297 in
Flange Thickness
0.043 in
Description
Rivet Nut, System of Measurement Inch, Insert Diameter 19/64 in, Overall Length 33/64 in, Installed Length 1/4 in, Thread Size 1/4 In.-20, Thread Type Coarse, Flange Diameter 0.452 in, Flange Thickness 0.043 in, Material Steel, Material Grade/Class 1008/1010, Body Texture Smooth, Compatible Material Metal, Drill Bit Size 19/64 in, Maximum Hole Diameter 0.297 in, Minimum Material Thickness 0.085 in, Maximum Material Thickness 0.145 in, Insert Nut Type Rivet Nut, Body Type Hex
