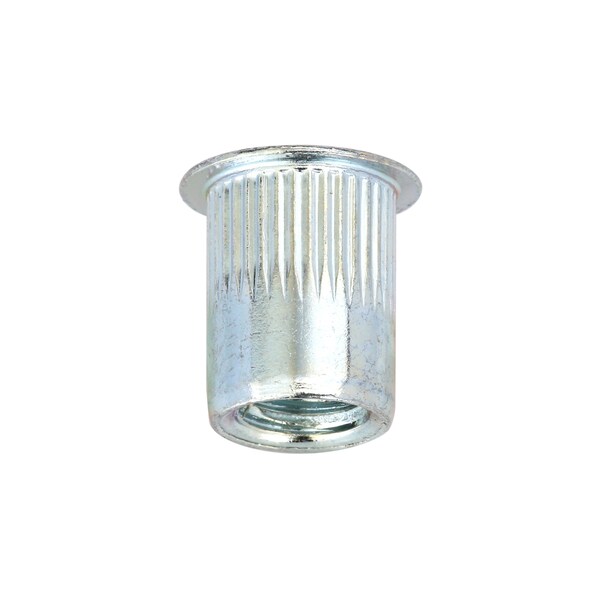

Rivet Nut, 3/8"-16 Thread Size, 0.685 in Flange Dia., 0.685 in L, Steel, 25 PK
Mfr # U69135.037.0150
Zoro # G1275014
CAD Available
product price:Â $8.99
/pk 25, $0.36/eaKey Features
CAD Drawing
Body Texture
Knurled
Flange Style
Flanged
Thread Size
3/8"-16
Drill Bit Size
17/32"
Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U69135.037.0150
Zoro #
G1275014
UPC #
-
Country of Origin
Multiple
Dimensions
Thread Size
3/8"-16
Drill Bit Size
17/32"
Flange Diameter
0.685 in
Insert Diameter
0.53 in
Overall Length
0.685 in
Hole Size
0.531 in
Head Height
0.07 in
Maximum Material Thickness
0.15 in
Maximum Hole Diameter
0.531 in
Minimum Material Thickness
0.027 in
Flange Thickness
0.07 in
Description
Rivet Nut, System of Measurement Inch, Insert Diameter 17/32 in, Overall Length 11/16 in, Thread Size 3/8 In.-16, Thread Type Coarse, Flange Diameter 0.685 in, Flange Thickness 0.07 in, Material Steel, Finish Plain, Body Texture Knurled, Compatible Material Fiberglass, Metal, Plastic, Drill Bit Size 17/32 in, Maximum Hole Diameter 0.531 in, Minimum Material Thickness 0.027 in, Maximum Material Thickness 0.15 in, Insert Nut Type Rivet Nut, End Type Open, Flange Style Flanged, Package Quantity 25
