Zoro Select Screw Machine Drill Set, TiAlN 460-000015B - main

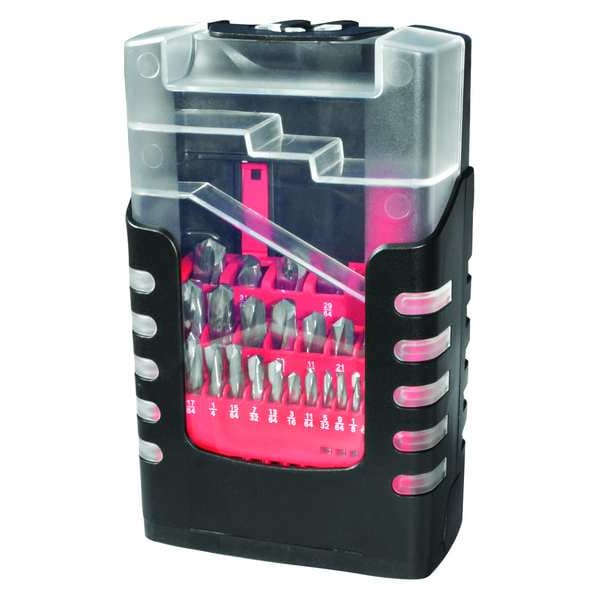

Screw Machine Drill Set, TiAlN

  • Mfr # 460-000015B

  • Zoro # G4172281

product price: $785.99
/ea
Free Shipping & Returns

Key Features

Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
Solid Carbide
Includes
1/16 in Screw Machine Drill, 1/2 in Screw Machine Drill, 1/4 in Screw Machine Drill, 1/8 in Screw Machine Drill, 11/32 in Screw Machine Drill, 13/32 in Screw Machine Drill, 15/32 in Screw Machine Drill, 3/16 in Screw Machine Drill, 3/32 in Screw Machine Drill, 3/8 in Screw Machine Drill, 5/16 in Screw Machine Drill, 5/32 in Screw Machine Drill, 7/16 in Screw Machine Drill, 7/32 in Screw Machine Drill, 9/32 in Screw Machine Drill
Coolant Through
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
460-000015B
Zoro #
G4172281
UPC #
888226263917
Country of Origin
United States

Dimensions

Sizes Included
1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Drill Bit Dimension Type
Fractional Inch
Flute Length
5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-11/16", 1-13/16", 1-15/16", 2-1/16", 2-1/8", 2-1/4"
Drill Bit Size
1/16 in to 1/2 in by 32nds
Shank Dia.
1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Overall Length
1-5/8", 1-3/4", 1-7/8", 2-1/16", 2-3/16", 2-3/8", 2-1/2", 2-11/16", 2-13/16", 3", 3-1/8", 3-5/16", 3-7/16", 3-5/8", 3-3/4"
Drill Diameter Tolerance
+0.0000 in/-0.0005 in
Largest Drill Bit Size
1/2 in
Drill Length Class
Screw-Machine Length
Smallest Drill Bit Size
1/16 in
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in, 9/32 in

Details

Item
Screw Machine Drill Bit Set
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
Solid Carbide
Includes
1/16 in Screw Machine Drill, 1/2 in Screw Machine Drill, 1/4 in Screw Machine Drill, 1/8 in Screw Machine Drill, 11/32 in Screw Machine Drill, 13/32 in Screw Machine Drill, 15/32 in Screw Machine Drill, 3/16 in Screw Machine Drill, 3/32 in Screw Machine Drill, 3/8 in Screw Machine Drill, 5/16 in Screw Machine Drill, 5/32 in Screw Machine Drill, 7/16 in Screw Machine Drill, 7/32 in Screw Machine Drill, 9/32 in Screw Machine Drill
Coolant Through
No
Number of Flutes
2
Point Type
Four Facet Point
Flute Type
Spiral
Decimal Equivalent
0.0625", 0.0938", 0.1250", 0.1562", 0.1875", 0.2188", 0.2500", 0.2812", 0.3125", 0.3438", 0.3750", 0.4062", 0.4375", 0.4688", 0.5000"
Drill Bit Grouping
Drill Bit Set
Application
Metalworking
List Number
460
Shank Type
Straight
Standards
Not Rated
Coolant Fed
Non-Coolant Through
Material - Machining
Carbide
Measurement System
Fractional Inch
Primary Material Application ISO Code
H, K, M, P, S
Number of Drill Bits
15
Spiral Direction
Right Hand
Finish - Machining
AlTiN
Primary Material Application
All Materials
Drill Bit Case Type
Box
Shank Type - Machining
Straight
Web Construction
Split
Web Thinning
Thinned
Material Grade - Machining
C2
Drill Bit Point Type
4 Facet Point
Thread Direction
Right Hand
Helix Angle - Maximum
15 Degrees
Helix Angle - Minimum
15 Degrees

Description

Screw Machine Drill Bit Set, Number of Drill Bits 15, 135 Degrees Drill Bit Point Angle, Carbide, AlTiN, Drill Bit Sizes Included 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in, 9/32 in, Fractional Inch, Drill Bit Point Type 4 Facet Point
