  13. Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 25 A at 480 V AC Contact Rating

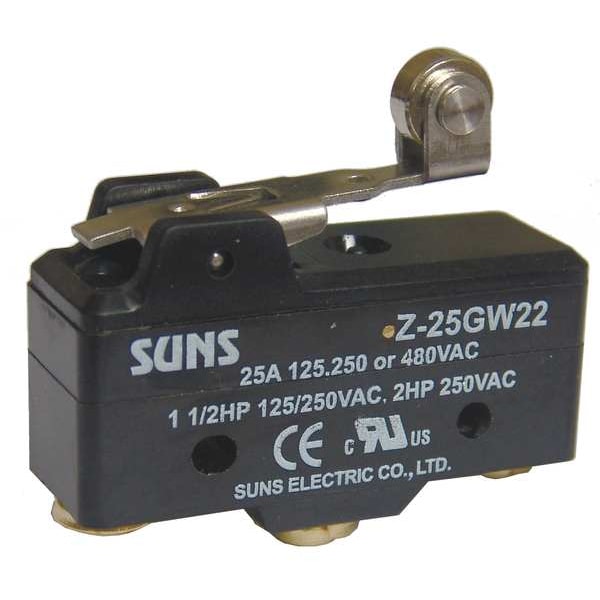

Zoro Select Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 25 A at 480 V AC Contact Rating 5JEG3 - main

Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 25 A at 480 V AC Contact Rating

  • Mfr # 5JEG3

  • Zoro # G1960996

product price: $11.45
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
25 A @ 480 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.39 in
Height - Snap Action Switch
0.64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JEG3
Zoro #
G1960996
UPC #
190735527924
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
1.39 in
Height - Snap Action Switch
0.64 in
Width - Snap Action Switch
1.82 in
Depth - Snap Action Switch
0.64 in
Mounting Dimension
1.00" Centers
Length
1.823"
Actuator Length
1.39"
Depth
0.64"
Height
0.64"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Body Height
0.64 in
Body Width
1.82 in
Manufacturer Warranty Length
1 yr
Lever Actuator Length
1.39 in
Roller Diameter
9 mm
Overall Height
0.64 in
Overall Depth
0.64 in
Overall Width
1.82 in
Mounting Hole Diameter
1/8 in
Roller Width
4 mm
Body Depth
0.64 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
25 A @ 480 V
Contact Form- Switches
SPDT
Contact Form
SPDT
Watertight - Snap Action Switch
No
Electrical Connection - Snap Action Switch
Screw
Differential Travel
0.093 in
Voltage Rating
125/250/480VAC
Standards
cRUus Component Recognized, CE
Operating Temp. Range
-40 Degrees to 221 Degrees F
Operating Force
3.53 oz
Housing Material
Phenolic Case and Cover
Type of Actuator
Hinge Roller Lever
Over Travel
0.187 in
Current Rating
25A
Terminal Type
Screw
Release Force
0.49 ozf
Max. Pretravel
0.25 in
Series
Microswitch
AC Contact Rating
25 A @ 480 V
DC Contact Rating
0.25 A @ 250 V
Roller Position
Offset
Electrical Connection
Screw
Body Material
Phenolic
Resistance Properties
Non-Magnetic
Center Mounting Hole Distance
1 in
Overtravel
0.187 in
Differential Travel - Maximum
2.16 mm
Roller Material
Stainless Steel
Operating Temperature - Minimum
-40 Degrees F
Roller Adjustability
Fixed
Actuator Style
Hinge Roller Lever
Pretravel
0.25 in
Operating Temperature - Maximum
221 Degrees F
Operating Force - Maximum
0.97 N

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 25 A @ 480 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.39 in, Height - Snap Action Switch 0.64 in, Width - Snap Action Switch 1.82 in, Depth - Snap Action Switch 0.64 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Microswitch
