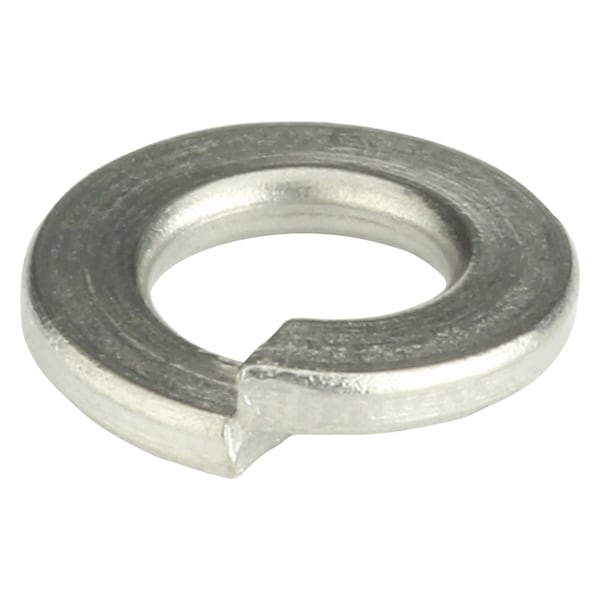

Split Lock Washer, For Screw Size 1/4 in 18-8 Stainless Steel, Plain Finish, 50 PK
Mfr # U51450.025.0001
Zoro # G5344656
CAD Available
product price: $4.25
/pk 50, $0.09/eaKey Features
CAD Drawing
Material
18-8 Stainless Steel
Finish
Plain
For Screw Size
1/4 in
Outside Diameter
0.487 in
Minimum Thickness
0.062 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U51450.025.0001
Zoro #
G5344656
UPC #
-
Country of Origin
Multiple
Dimensions
For Screw Size
1/4 in
Outside Diameter
0.487 in
Minimum Thickness
0.062 in
Maximum Thickness
1/16 in
Inside Diameter
0.252 in
Inside Diameter Tolerance
+0.008 in
Outside Diameter - Maximum
31/64 in
Bearing Width - Minimum
5/64 in
Minimum Inside Diameter
1/4 in
Section Width - Minimum
7/64 in
Inside Diameter - Maximum
17/64 in
Description
Split Lock Washer, Standard, 18-8 Stainless Steel, Fits Bolt Sizes 1/4 In., Inside Dia. 0.252 In., Outside Dia. 0.487 In., Thickness 0.062 In., Meets/Exceeds ASME B18.21.1, Package Quantity 50
