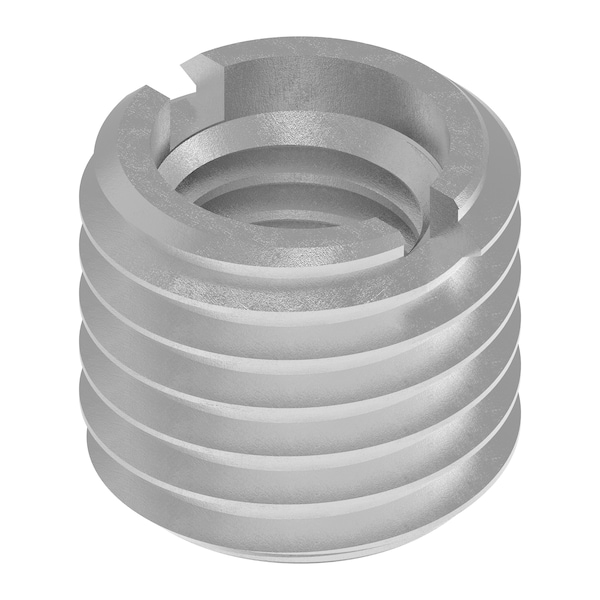

Standard Wall Self Locking Thread Insert, 1/2"-13 Int Thrd Sz, 316 Stainless Steel
Mfr # 316-8
Zoro # G409228156
CAD Available
product price: $11.19
/eaKey Features
CAD Drawing
Material
316 Stainless Steel
Overall Length
21/32 in
Insert Diameter
3/4 in
Wall Type
Standard Wall
Thread Type
Coarse, Fine
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
316-8
Zoro #
G409228156
UPC #
847554007648
Country of Origin
United States
Dimensions
Internal Thread Size
1/2"-13
Overall Length
21/32 in
Insert Diameter
3/4 in
External Thread Size
3/4"-10
Drill Bit Size
21/32 in
Minimum Installation Depth
3/4 in
Maximum Hole Diameter
0.656 in
Compatible Tap Size
3/4"-10
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 3/4 In.-10, Drill Bit Size 21/32, External Thread Fit 2A, External Thread Size 3/4 In.-10, Finish Plain, Insert Diameter 3/4 in, Internal Thread Fit 2B, Internal Thread Size 1/2 In.-13, Material Stainless Steel, Material Grade/Class 316, Maximum Hole Diameter 0.656 in, Minimum Installation Depth 3/4 in, Overall Length 21/32 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Fine
