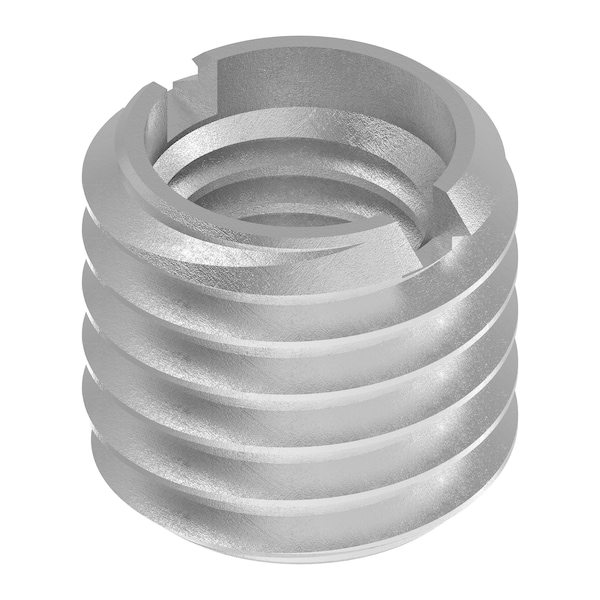

Standard Wall Self Locking Thread Insert, M10-1.50 Int Thrd Sz, 18-8 Stainless Steel
Mfr # EZ-653-10
Zoro # G409228132
CAD Available
product price: $110.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
M10-1.50
Material
18-8 Stainless Steel
Overall Length
13 mm
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-653-10
Zoro #
G409228132
UPC #
847554044018
Country of Origin
United States
Dimensions
Internal Thread Size
M10-1.50
Overall Length
13 mm
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Drill Bit Size
31/64 in
Minimum Installation Depth
19/32 in
Maximum Hole Diameter
0.484 in
Compatible Tap Size
9/16"-12
Details
CAD Available
Yes
Item
Self Locking Thread Insert
Material
18-8 Stainless Steel
Wall Type
Standard Wall
Thread Type
Coarse
Installation Method
Drive Tool, Screwdriver
Includes
(10) Threaded Inserts, Drill, Tap and Drive-Tool
Finish
Plain
System of Measurement
Inch/Metric
Compatible Material
Metal
Features
Easy to use Solution for Repairing or Reinforcing Tapped Holes in Metal, Everything Needed for Installation in a Convenient Kit, Ideal for Soft Metals, Like Aluminum, Cast Iron and Magnesium
Thread Pitch
1.5 mm
Drive Type
Slotted
External Thread Fit
2A
Thread Direction
Right Hand
Internal Thread Fit
6H
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 9/16 In.-12, Drill Bit Size 31/64, External Thread Fit 2A, External Thread Size 9/16 In.-12, Finish Plain, Insert Diameter 9/16 in, Internal Thread Fit 6H, Internal Thread Size M10-1.50, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.484 in, Minimum Installation Depth 19/32 in, Overall Length 13 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
