  9. Standard Wall Self Locking Thread Insert, M24-3.00 Int Thrd Sz, Steel, 5 PK

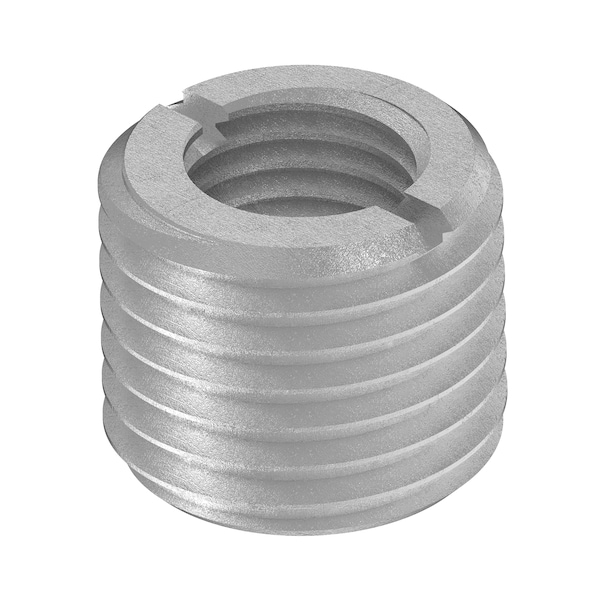

Zoro Select Standard Wall Self Locking Thread Insert, M24-3.00 Int Thrd Sz, Steel, 5 PK 450-24-PK5 - main

CAD Drawings

Download CAD Files

Standard Wall Self Locking Thread Insert, M24-3.00 Int Thrd Sz, Steel, 5 PK

  • Mfr # 450-24-PK5

  • Zoro # G209228264

CAD Available
product price: $49.79
/pk 5, $9.96/ea

Key Features

CAD Drawing
Internal Thread Size
M24-3.00
Material
Steel
Overall Length
30 mm
Insert Diameter
36 mm
External Thread Size
M36-4.00
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
450-24-PK5
Zoro #
G209228264
UPC #
847554005989
Country of Origin
United States

Dimensions

Internal Thread Size
M24-3.00
Overall Length
30 mm
Insert Diameter
36 mm
External Thread Size
M36-4.00
Drill Bit Size
33 mm
Minimum Installation Depth
35 mm
Compatible Tap Size
M36-4.00
Maximum Hole Diameter
33 mm

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
Steel
Wall Type
Standard Wall
Thread Type
Metric Internal/Metric External
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
78,300 psi
Finish
Black Phosphate
Brinell Hardness
163
Full Cure Time
72 hr
Compatible with Manufacturer Model Number
500-12
Features
Pre-Applied Adhesive
Drive Type
Slotted
Material Grade/Class
12L14
Compatible Material
Metal
System of Measurement
Metric
Internal Thread Fit
6H
Thread Direction
Right Hand
External Thread Fit
6G
Compatible Manufacturer Part Number
500-12
Compatible Manufacturer Model Number
500-12
For Use With Mfr. Model Number
500-12
Compatible with Manufacturer Model No.
500-12
Compatible with Mfr. Model No.
500-12
For Use with Mfr Model Number
500-12
Compatible Pump Manufacturer Part Number
500-12
Compatible Mfr. Model Number
500-12

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size M36-4.00, Drill Bit Size 33mm, External Thread Fit 6G, External Thread Size M36-4.00, Finish Black Phosphate, Insert Diameter 36 mm, Internal Thread Fit 6H, Internal Thread Size M24-3.00, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 33 mm, Minimum Installation Depth 35 mm, Overall Length 30 mm, System of Measurement Metric, Thread Direction Right Hand, Thread Type Coarse, Wall Type Standard Wall
