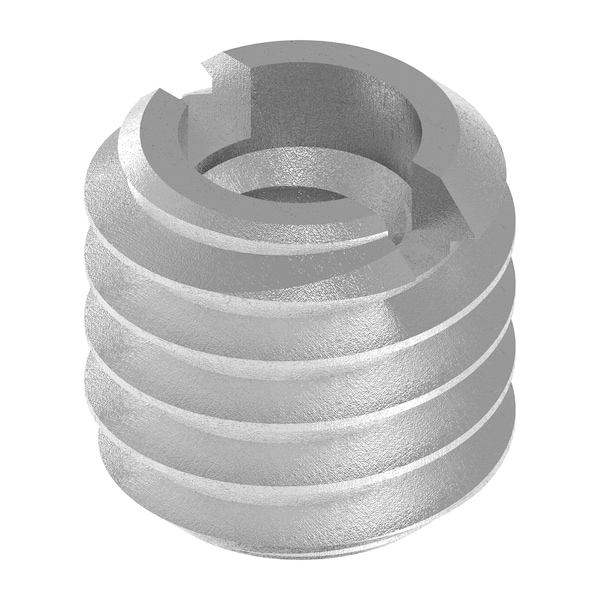

Standard Wall Self Locking Thread Insert, No. 8-32 Int Thrd Sz, 18-8 Stainless Steel
Mfr # EZ-303-008
Zoro # G509228254
CAD Available
product price:Â
$
57.59
/ea
Key Features
CAD Drawing
Internal Thread Size
#8-32
Material
18-8 Stainless Steel
Overall Length
19/64 in
Insert Diameter
5/16 in
External Thread Size
5/16"-18
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- EZ-303-008
- Zoro #
- G509228254
- UPC #
- 847554043806
- Country of Origin
- United States
Dimensions
- Internal Thread Size
- #8-32
- Overall Length
- 19/64 in
- Insert Diameter
- 5/16 in
- External Thread Size
- 5/16"-18
- Drill Bit Size
- F
- Minimum Installation Depth
- 7/16 in
- Maximum Hole Diameter
- 0.257 in
- Compatible Tap Size
- 5/16"-18
- Wire Rope Length
- 19/64 in
- Length
- 19/64 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/16 In.-18, Drill Bit Size F, External Thread Fit 2A, External Thread Size 5/16 In.-18, Finish Plain, Insert Diameter 5/16 in, Internal Thread Fit 2B, Internal Thread Size #8-32, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.257 in, Minimum Installation Depth 7/16 in, Overall Length 19/64 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
