  11. Stem Caster, 125 lb. Load, Black Wheel

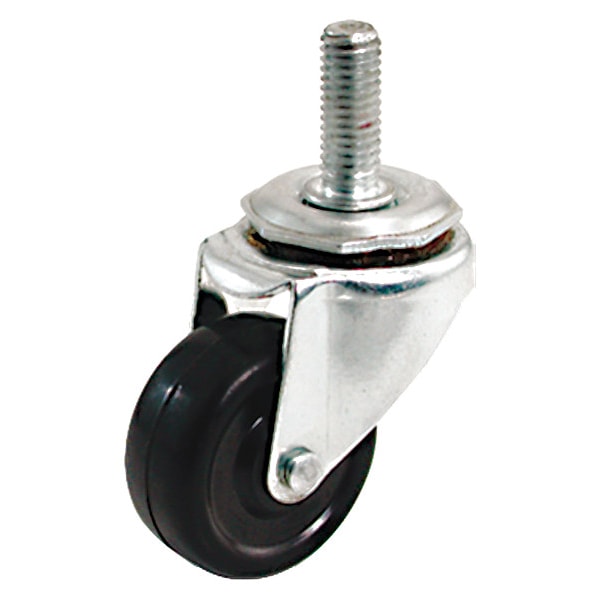

Zoro Select Stem Caster, 125 lb. Load, Black Wheel P5S-R030G-ST76 - main

Stem Caster, 125 lb. Load, Black Wheel

  • Mfr # P5S-R030G-ST76

  • Zoro # G3316873

product price: $8.39
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
3 1/2 in
Load Rating
120 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5S-R030G-ST76
Zoro #
G3316873
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
13/16 in
Mounting Height
3 1/2 in
Stem Length
1-1/2 in
Thread Size
7/16"-14
Stem Dia.
7/16 in
Wheel Dia.
3 in
Caster Thread Size
7/16"-14
Overall Height
3-1/2 in
Caster Stem Size
7/16"-14 x 1-1/2 in
Swivel Radius
2-5/16 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
120 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Number of Wheels
1
Caster Wheel Shape
Standard
Caster Brake Included
No
Caster Temp. Range
-20 Degrees To 125 Degrees F
Caster Sub-Type
Swivel
Caster Wheel/Tread Material
Solid Rubber
Caster Core Material
Rubber
Caster Temp. Range Available
Yes
Caster Wheel Bearings
Plain
Features
Smooth and Quiet
Core Color
Black
Caster Swivel Lock Type
No Lock Included
Wheel Color
Black
Frame Finish
Zinc Plated
Caster Product Group
Swivel Caster
Standards
RoHS, ICWM
Caster Raceway
Double Ball
Caster Load Rating Range
Light Duty
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Raceway Type
Double Ball
Wheel Core Material
Hard Rubber
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Black
Caster Break Type
No Brake Included
ESD Conductive
No
System of Measurement
Inch
Tread
Standard
Tread Color
Black
Extended Lead
No
Wheel/Tread Hardness
70-85 Shore A
Caster Mounting Type
Threaded Stem
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
P5 Series
Includes Thread Guards
No
Load Capacity
120 lb
Load Capacity - Maximum
120 lb
Wheel Hardness Rating
80 Shore A
For Surface Type
Tile, Vinyl, Wood
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Quiet-Roll
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Stem Caster, Swivel Caster, 120 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 7/8 in Wheel Width, Rubber Wheel/Tread Material, 3 1/2 in Mounting Height, Plain, 7/16 In.-14 x 1-1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
