  11. Stem Caster, 150 lb. Load, Black Wheel

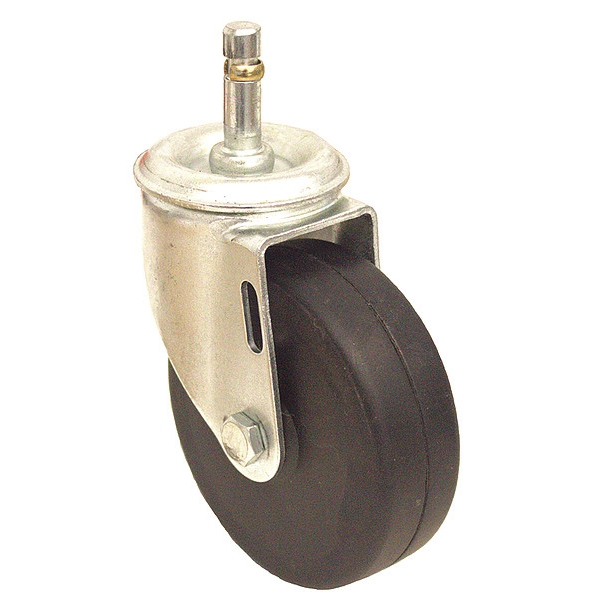

Zoro Select Stem Caster, 150 lb. Load, Black Wheel P12S-R040D-SG1 - main

Stem Caster, 150 lb. Load, Black Wheel

  • Mfr # P12S-R040D-SG1

  • Zoro # G6883508

product price: $15.35
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
5 in
Load Rating
150 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12S-R040D-SG1
Zoro #
G6883508
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
5 in
Stem Length
1-7/16 in
Wheel Dia.
4 in
Stem Dia.
7/16 in
Caster Thread Size
M8
Overall Height
5 in
Caster Stem Size
7/16 in x 1-7/16 in
Swivel Radius
3-1/4 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
150 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Delrin
Number of Wheels
1
Caster Raceway
Double Ball
Frame Finish
Zinc Plated
Core Color
Black
Caster Wheel Bearings
Delrin
Caster Wheel/Tread Material
Solid Rubber
Caster Temp. Range
-20 Degrees To 125 Degrees F
Standards
RoHS, ICWM, NSF
Caster Load Rating Range
Light Duty
Caster Swivel Lock Type
No Lock Included
Features
Smooth and Quiet
Caster Product Group
Swivel Caster
Wheel Color
Black
Caster Wheel Shape
Standard
Material
Rubber
Color
Black
Caster Temp. Range Available
Yes
Caster Core Material
Rubber
Caster Sub-Type
Swivel
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-R-040x013/038D
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel Core Material
Hard Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Wheel/Tread Hardness
70-85 Shore A
Includes Thread Guards
No
Tread
Standard
Caster Mounting Type
Grip Ring Stem
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Extended Lead
No
Tread Color
Black
Caster Break Type
No Brake Included
Series
P12 Series
Load Capacity
150 lb
ESD Conductive
No
Operating Temperature - Maximum
160 Degrees F
Caster Features
Corrosion-Resistant, Quiet-Roll
For Surface Type
Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature - Minimum
-15 Degrees F
Load Capacity - Maximum
150 lb
Wheel Hardness Rating
80 Shore A

Description

Stem Caster, Swivel Caster, 150 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 5 in Mounting Height, Delrin, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
