  11. Stem Caster, 4"dia, Polyolefin, 190lb

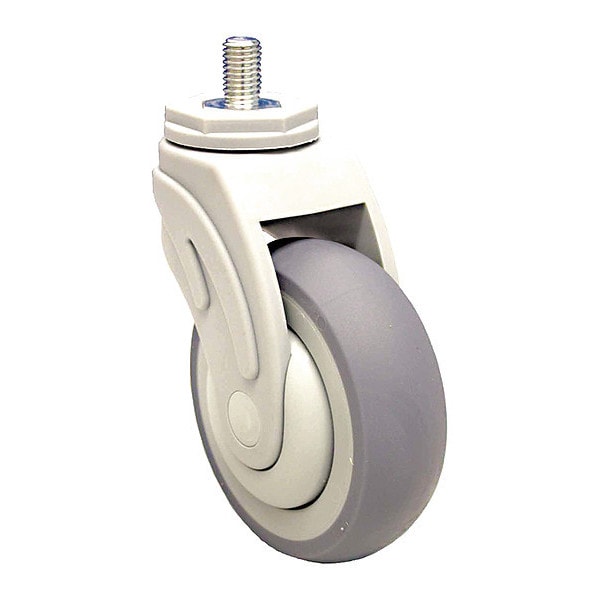

Zoro Select Stem Caster, 4"dia, Polyolefin, 190lb P17S-RP040K-ST85 - main

Stem Caster, 4"dia, Polyolefin, 190lb

  • Mfr # P17S-RP040K-ST85

  • Zoro # G4612445

product price: $19.49
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
5 13/16 in
Load Rating
190 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P17S-RP040K-ST85
Zoro #
G4612445
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
5 13/16 in
Stem Length
20 mm
Thread Size
M12x1.75
Swivel Radius
3-5/16 in
Wheel Dia.
4 in
Stem Dia.
12 mm
Tire Thickness
3/8 in
Caster Thread Size
M12
Overall Height
5-13/16 in
Caster Stem Size
M12-20 x 25/32 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
190 lb
Wheel/Tread Material
Polyolefin
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Caster Mounting Type
Threaded Stem
Caster Raceway
Precision Ball
Extended Lead
No
Caster Wheel/Tread Material
Thermoplastic Rubber
Load Capacity
190 lb
Caster Load Rating Range
Light Duty
Caster Product Group
Swivel Caster
Caster Swivel Lock Type
No Lock Included
Frame Finish
Natural Light Gray
Caster Core Material
Polypropylene
Features
Floor Protective, Noise Reduction
Includes
Thread Guards
Caster Temp. Range
-4 Degrees To 140 Degrees F
Wheel Color
Gray
Tread Color
Gray
Caster Wheel Shape
Standard
Caster Brake Included
No
Caster Wheel Bearings
Precision Ball
Core Color
Gray
Standards
RoHS, ICWM
Tread
Standard
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Swivel Raceway Type
Sealed Single Ball Bearing
Wheel/Tread Color
Gray
System of Measurement
Inch
Caster Break Type
No Brake Included
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Wheel/Tread Hardness
85-95 Shore A
Includes Thread Guards
Yes
Series
P17 Series
Wheel Core Type
Solid
For Surface Type
Tile, Vinyl, Wood
Operating Temperature - Maximum
180 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Load Capacity - Maximum
190 lb
Frame Color
Gray
Wheel Hardness Rating
70 Shore A
Operating Temperature - Minimum
-20 Degrees F

Description

Stem Caster, Swivel Caster, 190 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 1/4 in Wheel Width, Polyolefin Wheel/Tread Material, 5 13/16 in Mounting Height, Ball, M12-20 x 25/32 in Caster Stem Size, Threaded, Glass Filled Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 1 Number of Wheels
