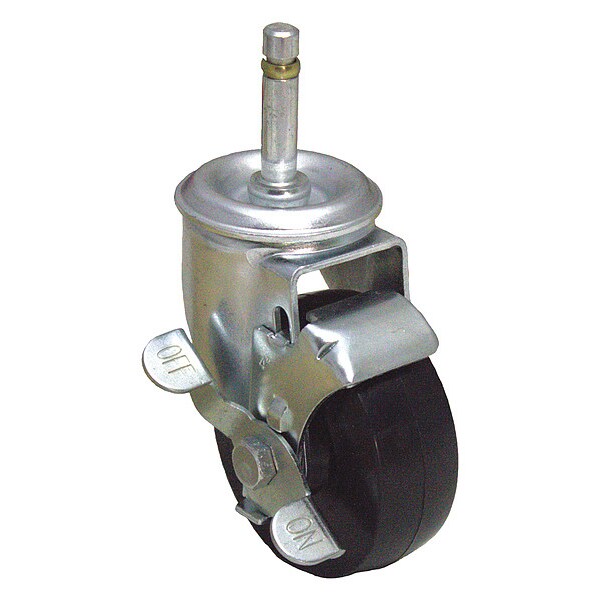

Stem Caster, 7/16" Stem Dia., 325 lb. Ld

product price: $13.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Stem Type Friction Ring Stem
  • Tread Shape Standard
  • Wheel Width 1-1/4 in
  • Mounting Height 5 in
  • Load Rating 240 lb
See all product information

Product Information

Dimensions

Wheel Width 1-1/4 in
Mounting Height 5 in
Stem Length 1-7/16 in
Wheel Dia. 4 in
Overall Height 5 in
Stem Dia. 7/16 in
Caster Stem Size 7/16 in x 1-7/16 in
Swivel Radius 3-1/4 in

Details

Item Swivel Stem Caster With Brake
Caster Stem Type Friction Ring Stem
Tread Shape Standard
Load Rating 240 lb
Wheel/Tread Material Rubber
Application Retail, Industrial, Commercial
Non-Marking No
Caster Brake Type Side Pedal Brake
Caster Frame Material Steel
Wheel Bearing Type Delrin
Number of Wheels 1
Caster Core Material Rubber
Caster Temp. Range Available Yes
Caster Product Group Swivel Caster With Brake
Includes Strap Type Brake
Features Noiseless Stem
Caster Temp. Range -20 Degrees To 125 Degrees F
Caster Wheel Shape Standard
Caster Brake Included Yes
Wheel Color Black
Core Color Black
Replacement Wheel Mfr. No. P-R-040x013/038D
Frame Finish Zinc Plated
Caster Raceway Double Ball
Standards RoHS, ICWM, NSF
Caster Sub-Type Swivel
Caster Swivel Lock Type No Lock Included
Caster Wheel/Tread Material Solid Rubber
Caster Load Rating Range Light Duty
Caster Wheel Bearings Delrin
Swivel Raceway Type Double Ball
Wheel Core Material Hard Rubber
Operating Temperature Range -40 Degrees to 180 Degrees F
Swivel Lock Type No Lock Included
Wheel/Tread Color Black
Tread Standard
Extended Lead No
Includes Thread Guards No
Series P12 Series
Load Capacity 150 lb
ESD Conductive No
Caster Break Type Strap Type Brake
Resistant To Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color Black
Wheel/Tread Hardness 70-85 Shore A
System of Measurement Inch
Caster Mounting Type Grip Ring Stem

Description

General Purpose Friction-Ring Stem Caster, Swivel Caster with Brake, 240 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 5 in Mounting Height, Delrin, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
