  6. Swivel NSF-Listed Plate Caster, Glass Filled Nylon, 4in, 275lb
Zoro Select Swivel NSF-Listed Plate Caster, Glass Filled Nylon, 4in, 275lb P12SX-HNG040G-12 - main

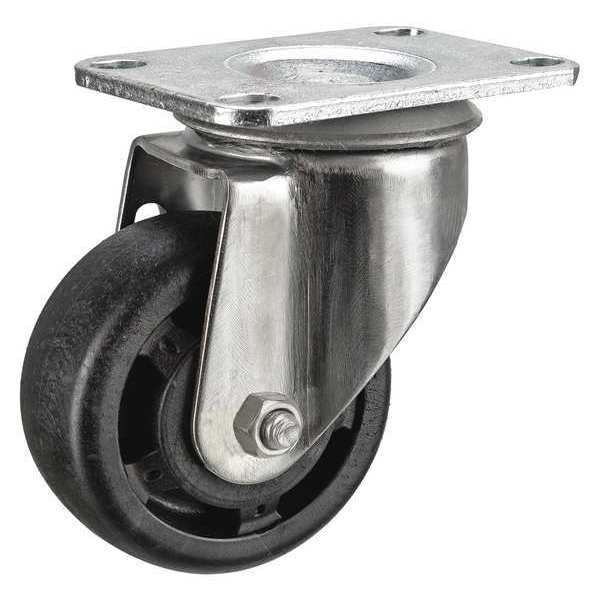

Swivel NSF-Listed Plate Caster, Glass Filled Nylon, 4in, 275lb

  • Mfr # P12SX-HNG040G-12

  • Zoro # G4627856

product price:  $38.99
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Glass Filled Nylon
Caster Brake Type
No Brake
Wheel Dia.
4 in
Mounting Height
5 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P12SX-HNG040G-12
Zoro #
G4627856
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/8in
Stem Dia.
No Stem
Wheel Width
1 1/4 in
Swivel Radius
3-1/4 in
Mounting Plate Length
2 1/2 in
Inside Slot Spacing - Length
2.813 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
For Axle Dia.
3/8 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Width
1.75 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Glass Filled Nylon
Caster Brake Type
No Brake
Load Rating
275 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Plate Hole Pattern
C
Extended Lead
No
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Application
Food Service, Hospitals, Laboratories, Pharmaceuticals
Standards
ANSI ICWM, NSF Listed
Wheel Color
Black
Frame Finish
Polished
Includes
Dust Cover
Caster Brake Included
No
Thread Guards
No
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. P-HNG-040x013/038G
Tread
Standard
System of Measurement
Inch
Tread Color
Black
Includes Thread Guards
No
Tread Shape
Standard
Wheel Core Material
Glass Filled Nylon
Load Rating Range
Light-Duty
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Load Capacity
220 lb
Series
P12X Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity - Maximum
300 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Operating Temperature - Maximum
550 Degrees F
Operating Temperature Range
Up to 550 Degrees F

Description

Swivel, Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
