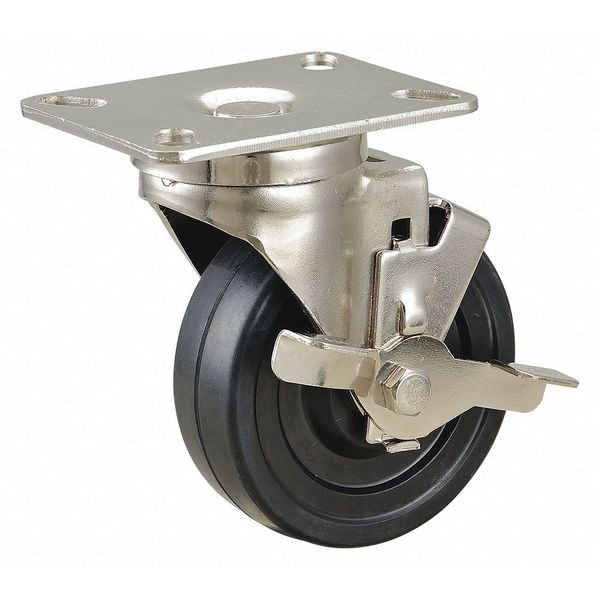

Zoro Select Swivel NSF-Listed Plate Caster w/Brake, Rubber, 4in, 200lb 33H637 - main

Swivel NSF-Listed Plate Caster w/Brake, Rubber, 4in, 200lb

  • Mfr # 33H637

  • Zoro # G4803391

product price:  $17.19
/ea

Key Features

Thread Guards
No
Caster Sub-Type
Swivel
Stem Dia.
No Stem
Non-Marking
No
Extended Lead
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
33H637
Zoro #
G4803391
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Overall Height
5-3/16in
Wheel Dia.
4 in
Swivel Radius
3 3/8 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Mounting Height
5 3/16 in
Mounting Plate Size
3 1/8 in x 4 1/8 in

Details

Thread Guards
No
Caster Sub-Type
Swivel
Non-Marking
No
Extended Lead
No
Replacement Wheel
Mfr. No. RR0405206G
Wheel Color
Black
Includes
Top and Bottom Grease Seals; Dust Cover
Caster Brake Included
Yes
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Frame Material
Steel
Frame Finish
Nickel Plated
Item
Plate Caster
Caster Plate Hole Pattern
A
Caster Brake Type
Side Brake
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Load Rating
200 lb
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Core Color
Black
Caster Temp. Range Available
Yes
Standards
NSF Listed
Tread Shape
Standard
Wheel/Tread Hardness Rating
Soft
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Load Rating Range
0 to 299 lb
Includes Thread Guards
Yes
Wheel Core Material
Rubber
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Delrin
Swivel Construction
Kingpin
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore A
Compatible With
RR0405206G
Load Capacity - Maximum
200 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
