  11. Swivel NSF-Listed Plate Cstr w/Brke, NSF-Listed Plate Type B
Zoro Select Swivel NSF-Listed Plate Cstr w/Brke, NSF-Listed Plate Type B 33J041 - main

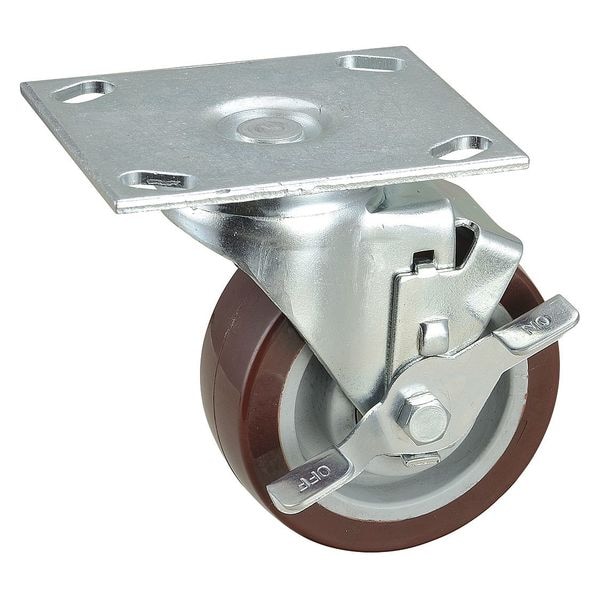

Swivel NSF-Listed Plate Cstr w/Brke, NSF-Listed Plate Type B

  • Mfr # 33J041

  • Zoro # G4805281

product price: $16.19
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Side Brake
Wheel Dia.
4 in
Wheel Width
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33J041
Zoro #
G4805281
UPC #
190735900871
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/2 in
Mounting Height
5 3/16 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Bolt Dia.
3/8 in
Overall Height
5-3/16in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Side Brake
Load Rating
375 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Red
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Caster Brake Included
Yes
Replacement Wheel
26Y363
Standards
ANSI, ANSI ICWM, NSF
Thread Guards
No
Extended Lead
No
Wheel Color
Red
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Caster Stem Type
No Stem/Plate Included
Includes
Dust Cover
Includes Thread Guards
Yes
Wheel Core Material
Polyolefin
Swivel Construction
Kingpin
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Load Capacity - Maximum
375 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 375 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
