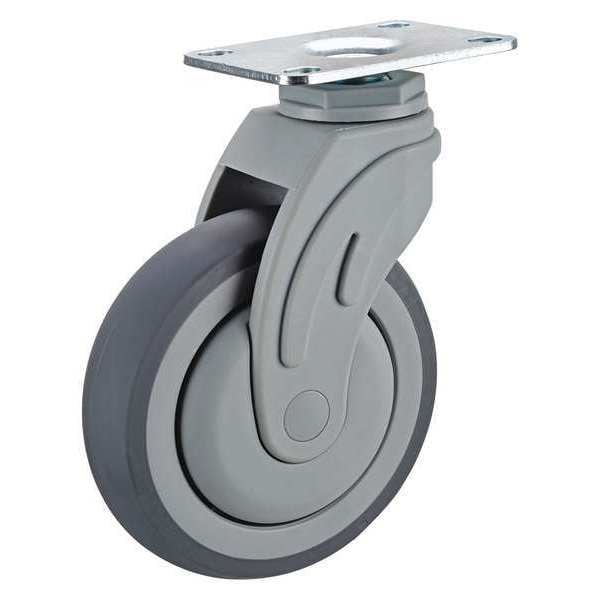

Zoro Select Swivel Plate Caster, 4 in. Dia., 275 lb. P17S-RP040K-12-001 - main

Swivel Plate Caster, 4 in. Dia., 275 lb.

  • Mfr # P17S-RP040K-12-001

  • Zoro # G2386334

product price:  $13.89
/ea

Key Features

Stem Dia.
No Stem
Caster Brake Included
No
Caster Plate Hole Pattern
C
Load Rating
190 lb
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P17S-RP040K-12-001
Zoro #
G2386334
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Overall Height
5-3/4in
Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
5 13/16 in
Swivel Radius
3-5/16 in
For Axle Dia.
8 mm
Mounting Plate Thickness
5/32in
Inside Slot Spacing - Length
2.813 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Length
2 1/2 in
Overall Wheel Width
1 1/4 in

Details

Caster Brake Included
No
Caster Plate Hole Pattern
C
Item
Swivel Caster
Load Rating
190 lb
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Non-Marking
Yes
Includes
Thread Guards
Frame Finish
Less ThanDELETE Greater Than
Number of Wheels
1
Caster Sub-Type
Swivel
Wheel Color
Gray
Caster Temp. Range Available
Yes
Caster Frame Material
Nylon
Thread Guards
Yes
Caster Stem Type
No Stem/Plate Included
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Core Color
Gray
Standards
ANSI ICWM
Extended Lead
No
Application
Animal Cage Carts, Case Carts, Food Service Equipment, Hospital Carts, Institutional Equipment, Medical Equipment, Utility Carts
System of Measurement
Inch
Caster Mounting Type
Plate
Caster Brake Type
No Brake
Tread
Standard
Tread Color
Gray
Includes Thread Guards
Yes
Wheel Bearing Type
Ball
Swivel Raceway Type
Precision Ball
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polypropylene
Load Rating Range
Light-Duty
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P17 Series
Load Capacity
190 lb
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
190 lb
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-30 Degrees to 180 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Swivel, Plate Caster, Load Rating 190 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
