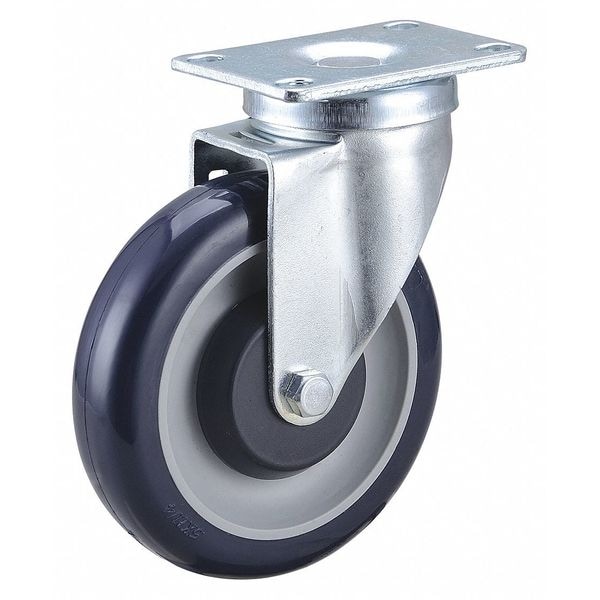

Swivel Plate Caster, 5 in Dia, 315 lb, Blue

product price: $16.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Crown
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 6-13/64"
Wheel Dia. 5 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Mounting Bolt Dia. 5/16 in
Plate Size 2-1/2" x 3-5/8"
Caster Plate Size 2-1/2" x 3-5/8"
Mounting Plate Size 2 1/2 in x 3 5/8 in
Mounting Height 6 13/64 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Crown
Caster Wheel/Tread Material Polyurethane
Load Rating 315 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Product Group Swivel Caster
Caster Core Material Polypropylene
Caster Max. Temp. 175 Degrees F
Item Debris-Resistant Standard Plate Caster
Frame Finish Zinc Plated
Application Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Wheel Color Blue
Caster Swivel Lock Type No Lock Included
Caster Frame Material Steel
Caster Plate Thickness 5/32"
Caster Min. Temp. -40 Degrees F
Caster Temp. Range Available Yes
Extended Lead No
Thread Guards Yes
Caster Temp. Range -40 Degrees to 175 Degrees F
Standards ANSI/ICWM,NSF/ANF
Includes Thread Guards
Plate Thickness 5/32"
Caster Plate Hole Pattern C
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Non-Marking Yes
Durometer 95 Shore A
Frame Material Steel
Plate Caster Bolt Hole Pattern C
Caster Wheel Bearings Ball
Caster Raceway Double Ball
Core Color Gray
Caster Brake Type No Brake Included
Tread Shape Standard
Wheel Bearing Type Precision Ball
Swivel Raceway Type Double Ball
Wheel/Tread Hardness 95 Shore A
Swivel Construction Kingpin
Includes Thread Guards Yes
Wheel/Tread Hardness Rating Firm
Mounting Plate Bolt Hole Pattern C
Load Rating Range 300 to 999 lb
Wheel Core Material Plastic
Number of Mounting Holes 4
Swivel Lock Type No Lock Included
Wheel/Tread Material Polyurethane
Wheel/Tread Color Blue

Description

Swivel, Debris-Resistant Standard Plate Caster, Load Rating 315 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
