  11. Swivel Plate Caster, 550 lb., Zinc Plated

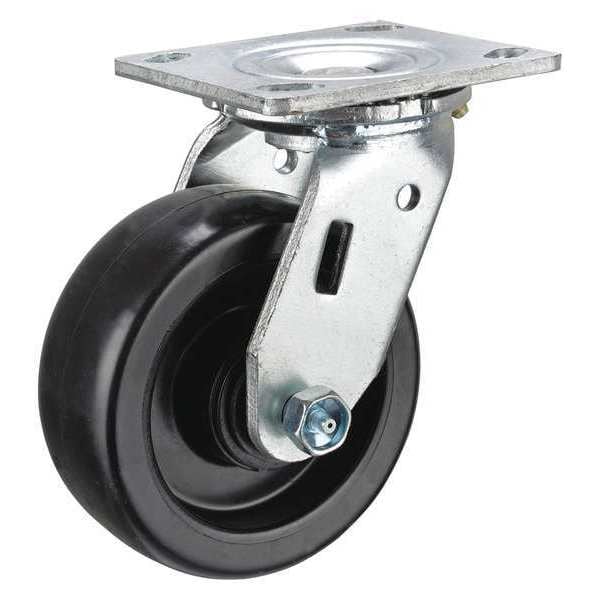

Zoro Select Swivel Plate Caster, 550 lb., Zinc Plated P21S-PB050R-14 - main

Swivel Plate Caster, 550 lb., Zinc Plated

  • Mfr # P21S-PB050R-14

  • Zoro # G6193521

product price: $32.89
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-PB050R-14
Zoro #
G6193521
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in
Stem Dia.
No Stem
Swivel Radius
4-3/16 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Length
4 1/2 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
No Brake
Load Rating
650 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Replacement Wheel
Mfr. No. P-PB-050x020/050R
Thread Guards
No
Frame Finish
Zinc Plated
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial, Corrosion Resistance
Wheel Color
Black
Caster Brake Included
No
Standards
RoHS, ICWM, NSF
Tread
Standard
Tread Color
Black
Swivel Construction
Kingpin
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
ESD Conductive
No
Series
P21 Series
Accessories
Optional: P-DL21-14 (Directional Lock)
Load Capacity
650 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Compatible With
P-PB-050X020/050R
Load Capacity - Maximum
650 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Maintenance Free
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 650 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
