  6. Swivel Plate Caster, 6 in. Dia., 1000 lb.

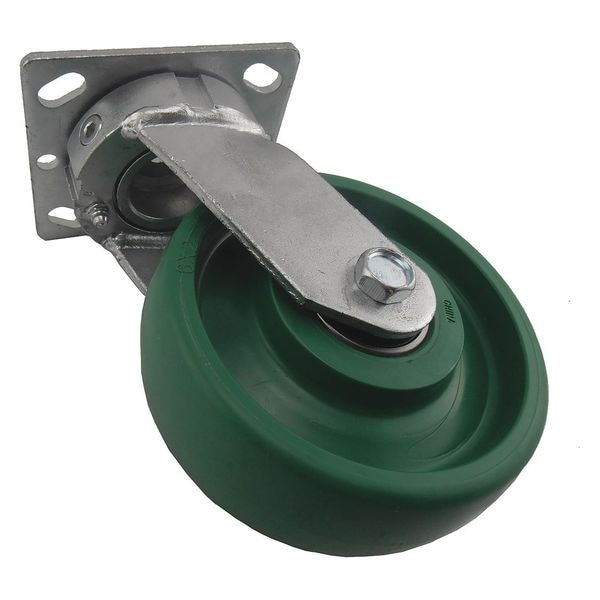

Zoro Select Swivel Plate Caster, 6 in. Dia., 1000 lb. 4DE80 - main

Swivel Plate Caster, 6 in. Dia., 1000 lb.

  • Mfr # 4DE80

  • Zoro # G0409516

product price:  $66.89
/ea

Key Features

Overall Height
7-1/2in
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Wheel Dia.
6 in
Caster Sub-Type
Swivel
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4DE80
Zoro #
G0409516
UPC #
190735898642
Country of Origin
China

Dimensions

Overall Height
7-1/2in
Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Item
Plate Caster
Caster Sub-Type
Swivel
Number of Wheels
1
Frame Finish
Zinc Plated
Non-Marking
Yes
Load Rating
1000 lb
Extended Lead
No
Thread Guards
No
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Wheel Color
Green
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Green
Caster Brake Type
No Brake
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polyurethane
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Load Capacity - Maximum
1,000 lb
Wheel Hardness Rating
65 Shore D
Operating Temperature Range
Up to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
