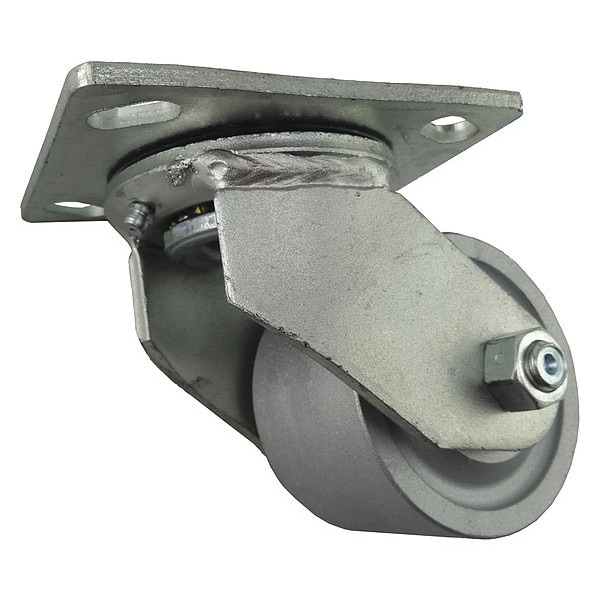

Swivel Plate Caster, Cast Iron, 3-1/4 in, 700 lb

  • Mfr # 1NWL2

  • Zoro # G2564834

product price:
$
37.29
/ea

Key Features

Caster Plate Hole Pattern
B
Overall Height
4-1/2"
Standards
ANSI ICWM
Load Rating
700 lb
Wheel Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1NWL2
Zoro #
G2564834
UPC #
190735406502
Country of Origin
China

Dimensions

Overall Height
4-1/2"
Wheel Dia.
3 1/4 in
Stem Dia.
No Stem
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Height
4 1/4 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Caster Plate Hole Pattern
B
Standards
ANSI ICWM
Load Rating
700 lb
Item
Plate Caster
Wheel Color
Gray
Frame Finish
Zinc Plated
Caster Stem Type
No Stem/Plate Included
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Sub-Type
Swivel
Thread Guards
No
Caster Temp. Range Available
No
Caster Brake Included
No
Caster Frame Material
Steel
Includes
Spanner Bushing
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
Gray
Number of Wheels
1
Caster Brake Type
No Brake
Non-Marking
Yes
System of Measurement
Inch
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel/Tread Material
Iron
Wheel Bearing Type
Roller
Wheel Core Material
Iron
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Gray
Load Capacity - Maximum
700 lb

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
