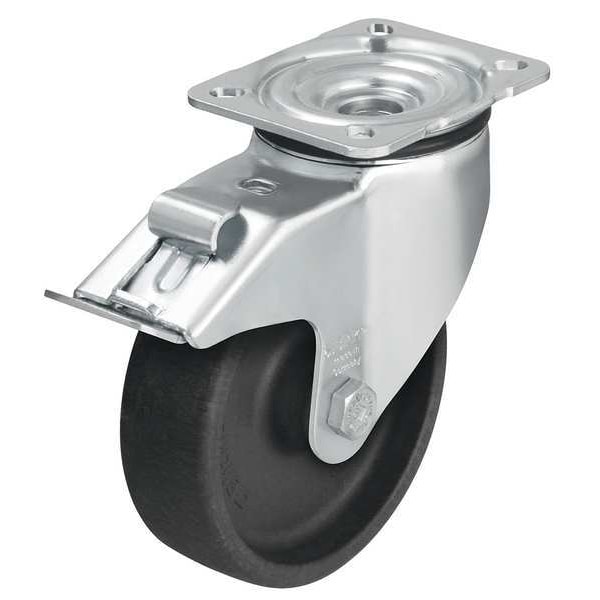

Zoro Select Swivel Plate Caster, Glass Nylon, 5 in, 660 lb LIK-POHI 125G-1-FI - main

Swivel Plate Caster, Glass Nylon, 5 in, 660 lb

  • Mfr # LIK-POHI 125G-1-FI

  • Zoro # G7157236

product price:  $88.19
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Wheel Color
Gray
Load Rating
660 lb
Caster Brake Type
Total Lock
Inside Bolt Hole Spacing
60 mm x 80 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LIK-POHI 125G-1-FI
Zoro #
G7157236
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
6-1/8in
Wheel Dia.
5 in
Wheel Width
1 9/16 in
Mounting Bolt Dia.
5/16 in
Mounting Height
6 1/8 in
Mounting Plate Size
3-3/8in x 3-15/16in
Swivel Radius
102.5 mm
Bolt Hole Spacing - Width
2.375 in
Mounting Plate Thickness
7/64in
Overall Wheel Width
1 9/16 in
Mounting Plate Length
3 3/8 in
For Axle Dia.
10 mm
Bolt Hole Spacing - Length
3.156 in

Details

Number of Wheels
1
Wheel Color
Gray
Load Rating
660 lb
Caster Brake Type
Total Lock
Inside Bolt Hole Spacing
60 mm x 80 mm
Application
Food Industry/Bakeries
Extended Lead
No
Standards
DIN EN 12574, ISO 14001, ISO 5001, ISO 9001
Replacement Wheel
Mfr. No. POHI 125/15G
Item
Swivel Caster with Total Lock
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Caster Plate Hole Pattern
A
Thread Guards
No
Outside Bolt Hole Spacing
60 mm x 80 mm
Caster Temp. Range Available
No
Caster Sub-Type
Swivel
Core Color
Gray
Caster Frame Material
Steel
Caster Stem Type
No Stem/Plate Included
Tread Color
Black
Non-Marking
Yes
Includes
Stop-Fix Total-Lock Brake
System of Measurement
Metric
Caster Mounting Type
Plate
Tread
Standard
Swivel Construction
Kingpin
Wheel/Tread Material
Nylon
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Bearing Type
Plain
Load Rating Range
Light-Medium Duty
Wheel Core Material
Glass Filled Nylon
Includes Thread Guards
No
Swivel Lock Type
Total Lock
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Gray
Resistant To
High Temperature, High Chemical Resistance To Many Aggressive Substances
Load Capacity
300 kg
Series
LIK Series
ESD Conductive
No
Wheel Hardness Rating
85 shore D
Compatible With
POHI 125/15G
Load Capacity - Maximum
660 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Brake Location
Rear
Caster Features
Corrosion-Resistant
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 250 Degrees C

Description

Swivel, Plate Caster, Load Rating 660 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 1 9/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
