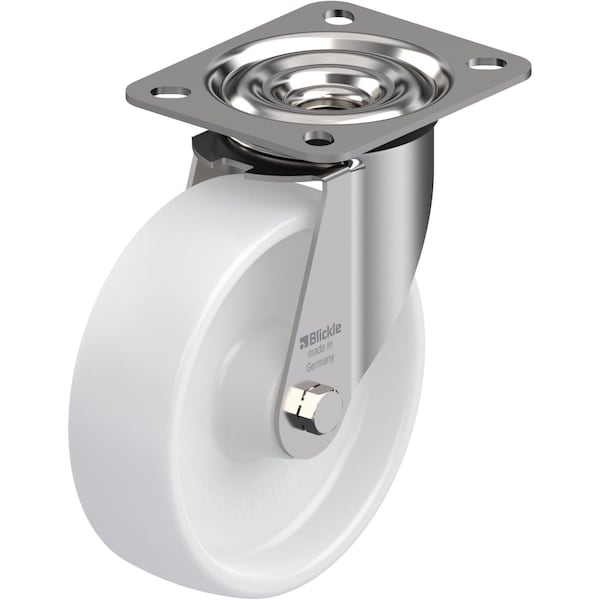

Swivel Plate Caster, Nylon, 5 in., 330 lb., SS

  • Mfr # LEX-PO 125XR

  • Zoro # G0385710

product price: $57.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LEX-PO 125XR
Zoro #
G0385710
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1 9/16 in
Mounting Height
5 7/8 in
Mounting Plate Size
3-15/16in x 3-3/8in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
5-7/8in
Swivel Radius
102.5 mm
Mounting Plate Length
3 3/8 in
Bolt Hole Spacing - Width
2.375 in
Bolt Hole Spacing - Length
3.156 in
Overall Wheel Width
1 9/16 in
For Axle Dia.
8 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
330 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
White
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Frame Finish
Stainless Steel
Features
Corrosion Resistant
Thread Guards
No
Standards
RoHS, ICWM
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Application
Retail, Industrial, Commercial, Corrosion Resistance
Caster Temp. Range Available
No
Wheel Color
White
Extended Lead
No
Replacement Wheel
Mfr. No. PO 125/12XR
Tread Color
White
Tread
Standard
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Wheel Core Material
Nylon
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Hard
Load Capacity
150 kg
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LEX Series
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
330 lb
Compatible With
PO 125/12XR
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 9/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
