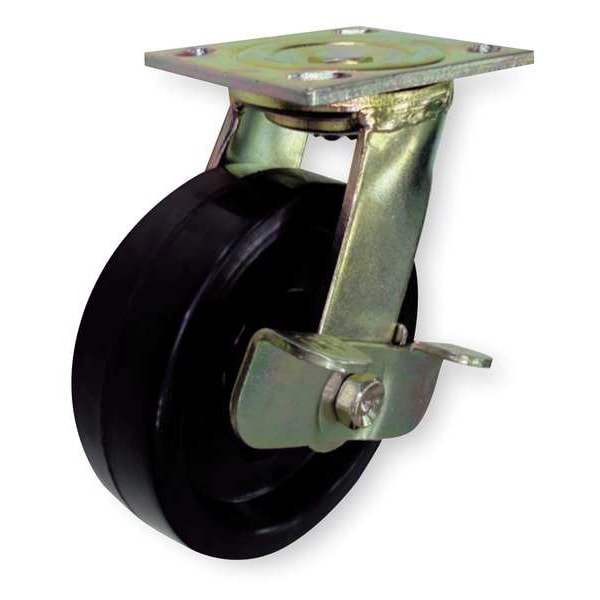

Swivel Plate Caster, Phenolic, 4 in., 800 lb.

  • Mfr # 1NUZ7

  • Zoro # G0919317

product price:
$
21.29
/ea

Key Features

Overall Height
5-5/8"
Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Caster Stem Type
No Stem/Plate Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1NUZ7
Zoro #
G0919317
UPC #
190735404232
Country of Origin
China

Dimensions

Overall Height
5-5/8"
Swivel Radius
3 9/16 in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
15/64in

Details

Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Caster Stem Type
No Stem/Plate Included
Application
General Purpose
Number of Wheels
1
Caster Brake Included
Yes
Caster Brake Type
Side Brake
Non-Marking
Yes
Caster Temp. Range Available
No
Caster Plate Hole Pattern
B
Thread Guards
No
Item
Plate Caster
Caster Sub-Type
Swivel
Standards
ANSI, ANSI ICWM
Frame Finish
Zinc Chromate
Wheel Color
Black
Load Rating
800 lb
Core Color
Black
System of Measurement
Inch
Tread Shape
Standard
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Phenolic
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Load Capacity - Maximum
800 lb
Wheel Hardness Rating
85 Shore D
Operating Temperature Range
-40 Degrees to 250 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
