  11. Swivel Plate Caster, Polyurethane, 4 in, 400 lb, C

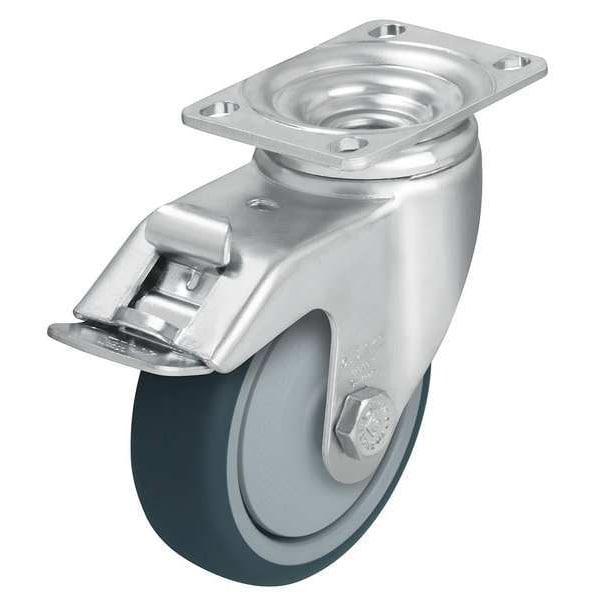

Zoro Select Swivel Plate Caster, Polyurethane, 4 in, 400 lb, C L-PATH 100KF-12-FI - main

Swivel Plate Caster, Polyurethane, 4 in, 400 lb, C

  • Mfr # L-PATH 100KF-12-FI

  • Zoro # G6530921

product price: $36.25
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Caster Brake Type
Total Lock
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-PATH 100KF-12-FI
Zoro #
G6530921
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
9 mm
Overall Height
5-1/8in
Stem Dia.
No Stem
Swivel Radius
3-7/16 in
Mounting Plate Width
2 1/2 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Length
3 5/8 in
For Axle Dia.
8 mm
Overall Wheel Width
1 1/4 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Caster Brake Type
Total Lock
Load Rating
400 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Thread Guards
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
Yes
Extended Lead
No
Frame Finish
Zinc Plated
Features
American Standard Plate Size
Wheel Color
Gray
Caster Temp. Range Available
No
Replacement Wheel
Mfr. No. PATH 100/10K-FK
Caster Stem Type
No Stem/Plate Included
Standards
RoHS, ICWM
Tread Color
Dark Gray
Includes
Stop-Fix Total-Lock Brake
Tread
Standard
Swivel Raceway Type
Double Ball
Wheel Core Material
Nylon
Swivel Lock Type
Total Lock
Load Rating Range
Light-Medium Duty
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Wheel/Tread Hardness Rating
Firm
Series
L Series
ESD Conductive
No
Load Capacity
400 lb
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-03.12 (Directional Lock)
Compatible With
PATH 100/10K-ELS-FK
Load Capacity - Maximum
440 lb
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Brake Location
Rear
Mounting Plate Shape
Rectangle
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
