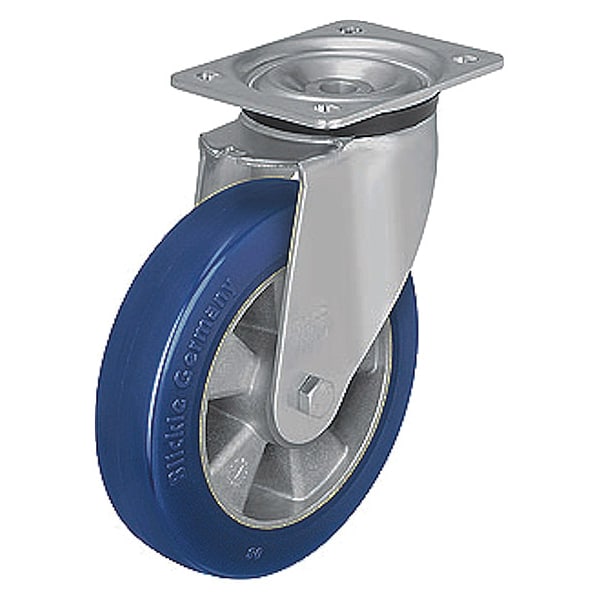

Zoro Select Plate Caster, 770 lb. Ld Rating, Ball LK-ALBS 125K-1 - main

Plate Caster, 770 lb. Ld Rating, Ball

  • Mfr # LK-ALBS 125K-1

  • Zoro # G7279032

product price:  $76.19
/ea
Free Shipping & Returns

Key Features

Standards
DIN EN 12532, ANSI ICWM
Caster Temp. Range Available
Yes
Mounting Bolt Dia.
5/16 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Wheel Dia.
5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LK-ALBS 125K-1
Zoro #
G7279032
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Dia.
5 in
Swivel Radius
4 3/8 in
Overall Height
6-3/32in
Wheel Width
1 9/16 in
Mounting Plate Size
85 mm x 100 mm
Mounting Height
6 1/8 in
Bolt Hole Spacing - Length
3.156 in
Mounting Plate Thickness
3.5 mm
For Axle Dia.
10 mm
Bolt Hole Spacing - Width
2.375 in
Mounting Plate Length
3 3/8 in
Overall Wheel Width
1 9/16 in

Details

Standards
DIN EN 12532, ANSI ICWM
Caster Temp. Range Available
Yes
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Item
Swivel Caster
Wheel Color
Blue
Core Color
Silver
Caster Sub-Type
Swivel
Extended Lead
No
Outside Bolt Hole Spacing
60 mm x 80 mm
Thread Guards
No
Replacement Wheel
Mfr. No. ALBS 125/15K
Non-Marking
Yes
Caster Frame Material
Steel
Inside Bolt Hole Spacing
60 mm x 80 mm
Features
Floor Protective, Reduced Swivel Forces
Caster Brake Included
No
Caster Plate Hole Pattern
D
Frame Finish
Zinc Plated
Load Rating
770 lb
Number of Wheels
1
Caster Brake Type
No Brake
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Tread Shape
Crown
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Load Rating Range
Medium Duty
Wheel Bearing Type
Precision Ball
Number of Mounting Holes
4
Wheel Core Material
Aluminum
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Besthane Soft Polyurethane
Wheel/Tread Color
Blue
System of Measurement
Metric
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LK Series
Tread
Standard
ESD Conductive
No
Caster Mounting Type
Plate
Load Capacity
350 kg
Tread Color
Blue
Compatible With
ALBS 125/15K
Load Capacity - Maximum
770 lb
Wheel Hardness Rating
75 Shore A
Wheel Core Type
Solid
Mounting Hole Type
Hole
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 770 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
