  11. Swivel Plate Caster, Polyurethane, 400 lb.

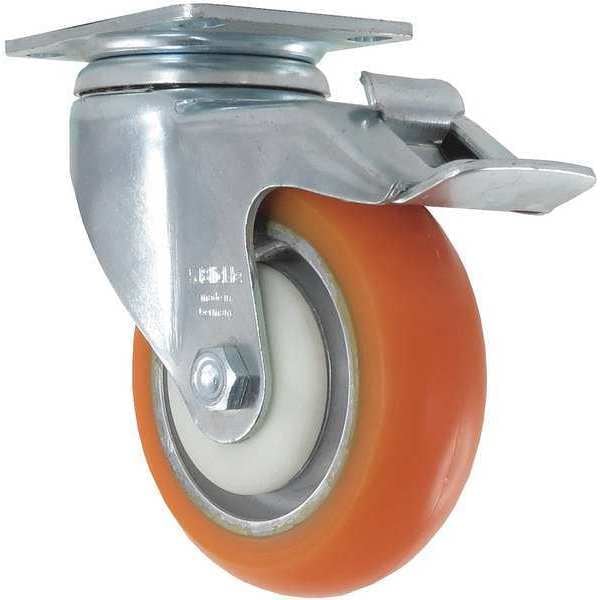

Zoro Select Swivel Plate Caster, Polyurethane, 400 lb. CDP-G-85 - main

Swivel Plate Caster, Polyurethane, 400 lb.

  • Mfr # CDP-G-85

  • Zoro # G2392787

product price: $54.79
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CDP-G-85
Zoro #
G2392787
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 1/8 in
Mounting Plate Size
2 3/8 in x 3 5/8 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/8in
Swivel Radius
4 1/8 in
Bolt Hole Spacing - Width
1.75 in
Mounting Plate Width
2 3/8 in
For Axle Dia.
3/8 in
Mounting Plate Length
3 5/8 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Load Rating
400 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Orange
Wheel Hardness Rating
87 Shore A
Number of Mounting Holes
4
Tread Shape
Donut
Caster Frame Material
Aluminum
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
C
Thread Guards
No
Caster Brake Included
Yes
Application
Food Service, Medical
Extended Lead
No
Replacement Wheel
Mfr. No. CDP-G-82
Caster Temp. Range Available
No
Wheel Color
Orange
Frame Finish
Zinc Plated
Swivel Raceway Type
Single Ball
Wheel Core Material
Aluminum
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Swivel Lock Type
Total Lock
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Compatible With
CDP-G-82
Load Capacity - Maximum
400 lb
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Oil, Rubber, Steel, Tile, Vinyl, Wood
Brake Location
Face
Caster Features
Debris-Resistant, Quiet-Roll

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Donut
