  11. Swivel Plate Caster, Rubber, 2 in., 110 lb.
Zoro Select Swivel Plate Caster, Rubber, 2 in., 110 lb. LPXA-VPA 50G-FI - main

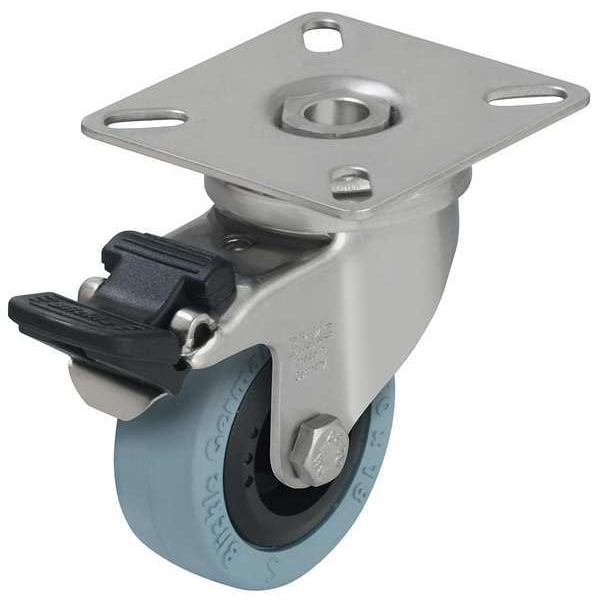

Swivel Plate Caster, Rubber, 2 in., 110 lb.

  • Mfr # LPXA-VPA 50G-FI

  • Zoro # G4569381

product price: $51.29
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
Total Lock
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LPXA-VPA 50G-FI
Zoro #
G4569381
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 in
Wheel Width
11/16 in
Mounting Height
2 13/16 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Plate Thickness
3/32in
Mounting Bolt Dia.
7/32 in
Stem Dia.
No Stem
Overall Height
2-11/16in
Swivel Radius
50 mm
Mounting Plate Width
60 mm
For Axle Dia.
6 mm
Outside Slot Spacing - Width
48 mm
Bolt Hole Spacing - Length
1.5 in
Inside Slot Spacing - Length
38 mm
Outside Slot Spacing - Length
48 mm
Inside Slot Spacing - Width
38 mm
Mounting Plate Length
60 mm
Overall Wheel Width
11/16 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
Total Lock
Load Rating
85 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Caster Plate Hole Pattern
A
Replacement Wheel
Mfr. No. VPA 50/8G
Thread Guards
No
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
No
Frame Finish
Stainless Steel
Standards
RoHS, ICWM, NSF
Application
Retail, Industrial, Commercial
Caster Brake Included
Yes
Wheel Color
Gray
Extended Lead
No
Tread
Standard
Tread Color
Gray
Includes
Stop-Fix Total-Lock Brake
Load Rating Range
Light-Duty
Swivel Construction
Kingpin
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Swivel Lock Type
Total Lock
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Soft
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Series
LPXA Series
Load Capacity
40 kg
ESD Conductive
No
Compatible With
VPA 50/8G
Load Capacity - Maximum
90 lb
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Brake Location
Rear
Caster Features
Corrosion-Resistant
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel, Plate Caster, Load Rating 85 lb, Swivel Lock Type Total Lock, Wheel Dia. 2 in, Wheel Width 11/16 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
