Shop ZORO SELECT

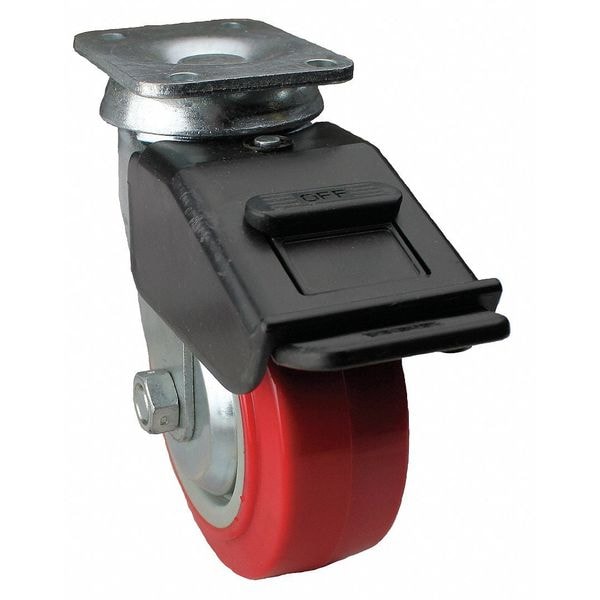

Swivel Plate Caster w/Total-Lock, Polyur, 5in, 650lb

  • Mfr # 08IX05201S002G

  • Zoro # G4806803

product price:  $49.99
/ea

Key Features

Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Frame Finish
Zinc Chromate
Load Rating
650 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
08IX05201S002G
Zoro #
G4806803
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Wheel Dia.
5 in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2"
Mounting Plate Size
2 3/4 in x 3 3/4 in

Details

Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Frame Finish
Zinc Chromate
Load Rating
650 lb
Number of Wheels
1
Includes
Thread Guards
Extended Lead
No
Outside Bolt Hole Spacing
1 3/4 in x 3 in
Item
Plate Caster
Caster Frame Material
Steel
Caster Brake Type
Total Lock
Wheel Color
Red
Non-Marking
Yes
Thread Guards
Yes
Application
Dollies, Floor Trucks, Shop Carts, Tool Boxes, Warehouse Trucks
Caster Plate Hole Pattern
C
Replacement Wheel
Mfr. No. XA0520112
Inside Bolt Hole Spacing
1 3/4 in x 2 7/8 in
Core Color
Gray
System of Measurement
Inch
Wheel Core Material
Polyolefin
Load Rating Range
300 to 999 lb
Tread Shape
Standard
Swivel Lock Type
Total Lock
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Polyurethane
Compatible With
XA0520112
Load Capacity - Maximum
650 lb
Wheel Hardness Rating
90 Shore A
Wheel Bearing Type
Roller
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 650 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
