  11. Swivel Plate Shock-Absorbing Cstr, 165 lb
Zoro Select Swivel Plate Shock-Absorbing Cstr, 165 lb GDS-100B-SF - main

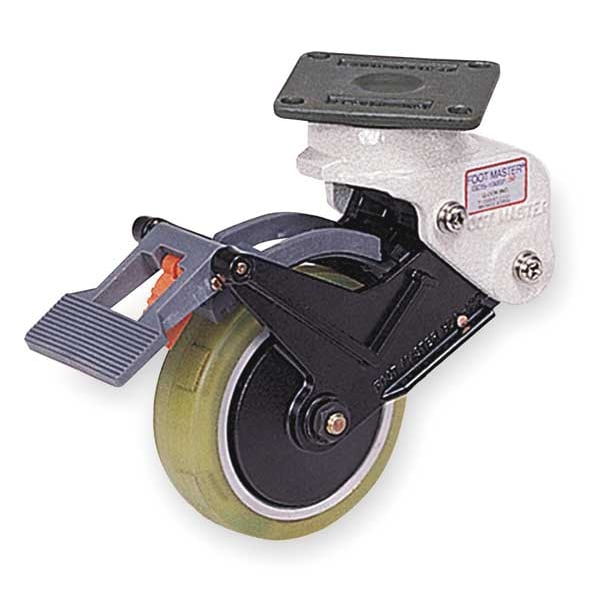

Swivel Plate Shock-Absorbing Cstr, 165 lb

  • Mfr # GDS-100B-SF

  • Zoro # G1564394

product price: $94.49
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Wheel Dia.
4 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GDS-100B-SF
Zoro #
G1564394
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
6 5/16 in
Mounting Plate Size
2 7/8 in x 2 7/8 in
Mounting Plate Thickness
4 1/2 mm
Mounting Bolt Dia.
1/4 in
Overall Height
6-5/16in
Stem Dia.
No Stem
Mounting Plate Width
73 mm
Bolt Hole Spacing - Length
6 mm
Bolt Hole Spacing - Width
7 mm
Overall Wheel Width
4 in
Mounting Plate Length
73 mm

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Load Rating
165 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Clear
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Donut
Caster Frame Material
Aluminum
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/16 in x 2-5/16 in
Inside Bolt Hole Spacing
2-5/16 in x 2-5/16 in
Caster Plate Hole Pattern
D
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Frame Finish
Powder Coated
Wheel Color
Clear
Standards
ANSI, CE
Features
Shock Absorbing
Caster Temp. Range Available
Yes
Includes
Mounting Hardware
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Load Rating Range
0 to 299 lb
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
Yes
Wheel Core Material
Aluminum
Swivel Construction
Kingpinless
Wheel Type
Solid
Load Capacity - Maximum
165 lb
Mounting Hole Type
Hole
Brake Location
Face
Caster Features
Shock-Absorbing
For Surface Type
Asphalt, Ceramic, Rubber, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature - Minimum
15 Degrees F
Operating Temperature Range
14 Degrees to 194 Degrees F
Operating Temperature - Maximum
190 Degrees F

Description

Swivel, Plate Caster, Load Rating 165 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Donut
