  11. Swivel Pneumatic Cstr, 8 in, 210 lb, Silver

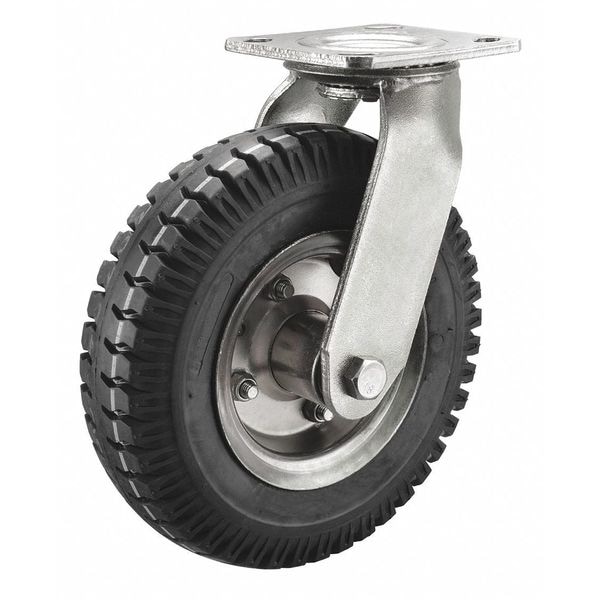

Zoro Select Swivel Pneumatic Cstr, 8 in, 210 lb, Silver P21S-P080B-14 - main

Swivel Pneumatic Cstr, 8 in, 210 lb, Silver

  • Mfr # P21S-P080B-14

  • Zoro # G6172031

product price: $52.49
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber Pneumatic
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-P080B-14
Zoro #
G6172031
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Tire Thickness
1/4 in
Hub Width
2-7/16 in
Tire Rim Dia.
4 in
Swivel Radius
6-5/8 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber Pneumatic
Caster Brake Type
No Brake
Load Rating
210 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Tread Color
Black
Hub Type
Symmetrical
Hub Material
Steel
Hub Color
Silver
Frame Finish
Zinc Plated
Ply
4
Caster Temp. Range Available
No
Tread
Ribbed
Caster Brake Included
No
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. P 200/20K
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Includes Thread Guards
No
Load Rating Range
Light-Duty
Wheel/Tread Hardness Rating
Soft
Extended Lead
No
Wheel Type
Pneumatic
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
P21 Series
Accessories
Optional: P-DL21-14 (Directional Lock)
Load Capacity
200 lb
Wheel Core Material
Pressed Steel
Load Capacity - Maximum
210 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Caster Features
Corrosion-Resistant
Operating Temperature Range
-15 Degrees To 120 Degrees F

Description

Swivel, Plate Caster, Load Rating 210 lb, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
