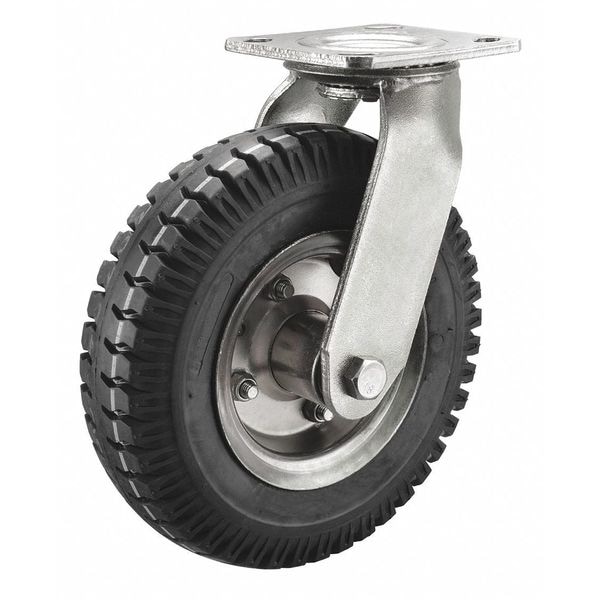

Zoro Select Swivel Pneumatic Cstr, 8 in, 210 lb, Silver P21S-P080B-14 - main

Swivel Pneumatic Cstr, 8 in, 210 lb, Silver

  • Mfr # P21S-P080B-14

  • Zoro # G6172031

product price:  $49.15
/ea

Key Features

Overall Height
9-1/2in
Tread Color
Black
Wheel Dia.
8 in
Number of Wheels
1
Tire Thickness
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-P080B-14
Zoro #
G6172031
UPC #
-
Country of Origin
China

Dimensions

Overall Height
9-1/2in
Wheel Dia.
8 in
Tire Thickness
1/4 in
Hub Width
2-7/16 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Tire Rim Dia.
4 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Swivel Radius
6-5/8 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Mounting Plate Thickness
0.236 in
Inside Slot Spacing - Width
2.625 in

Details

Tread Color
Black
Number of Wheels
1
Item
Swivel Caster
Hub Type
Symmetrical
Caster Sub-Type
Swivel
Hub Material
Steel
Hub Color
Silver
Frame Finish
Zinc Plated
Load Rating
210 lb
Ply
4
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Caster Temp. Range Available
No
Caster Mounting Type
Plate
Tread
Ribbed
Non-Marking
No
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Type
No Brake
Caster Brake Included
No
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Standards
RoHS, ICWM, NSF
Core Color
Silver
Replacement Wheel
Mfr. No. P 200/20K
System of Measurement
Inch
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Caster Frame Material
Steel
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Includes Thread Guards
No
Load Rating Range
Light-Duty
Wheel/Tread Material
Rubber Pneumatic
Wheel/Tread Hardness Rating
Soft
Extended Lead
No
Wheel Type
Pneumatic
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
P21 Series
Tread Shape
Standard
Accessories
Optional: P-DL21-14 (Directional Lock)
Load Capacity
200 lb
Wheel Core Material
Pressed Steel
Wheel Hardness Rating
80 Shore A
Load Capacity - Maximum
210 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Caster Features
Corrosion-Resistant
Operating Temperature Range
-15 Degrees To 120 Degrees F

Description

Swivel, Plate Caster, Load Rating 210 lb, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
