  11. Swivel Stem Caster, TPR, 5 in., 260 lb.
Zoro Select Swivel Stem Caster, TPR, 5 in., 260 lb. P14S-RP050K-SX3 - main

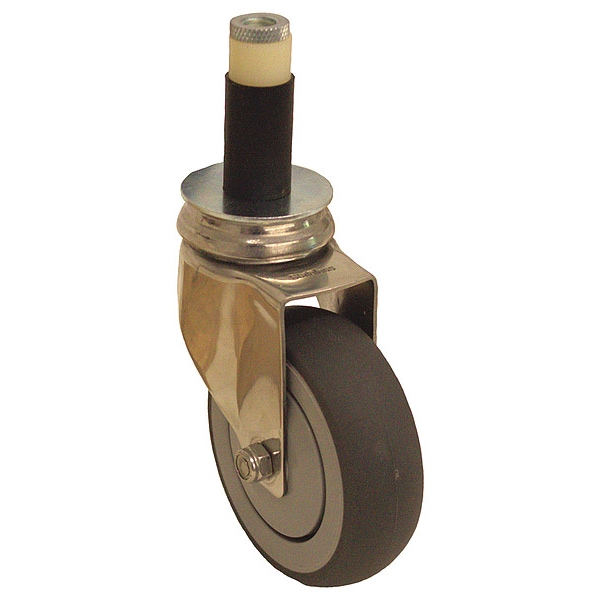

Swivel Stem Caster, TPR, 5 in., 260 lb.

  • Mfr # P14S-RP050K-SX3

  • Zoro # G1231955

product price: $39.59
/ea

Key Features

Caster Stem Type
Expandable Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
6 7/16 in
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P14S-RP050K-SX3
Zoro #
G1231955
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
6 7/16 in
Stem Length
2-1/2 in
Thread Size
1/2"-13
Overall Height
6-5/16 in
Wheel Dia.
5 in
Caster Thread Size
1/2"-13
Stem Dia.
1 in - 1-1/8 in
Caster Stem Size
1/2"-13 x 2-1/4 in
Swivel Radius
4-1/4 in

Details

Item
Swivel Expanding Stem Caster
Caster Stem Type
Expandable Stem
Tread Shape
Standard
Load Rating
220 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Number of Wheels
1
Core Color
Gray
Caster Raceway
Double Ball
Standards
RoHS, ICWM
Caster Wheel/Tread Material
Thermoplastic Rubber
Replacement Wheel
Mfr. No. P-RP-050x013/031K
Caster Temp. Range Available
Yes
Includes
Thread Guards
Wheel Color
Gray
Caster Sub-Type
Swivel
Caster Temp. Range
-4 Degrees To 140 Degrees F
Caster Swivel Lock Type
No Lock Included
Caster Product Group
Swivel Caster
Caster Wheel Bearings
Precision Ball
Caster Brake Included
No
Caster Load Rating Range
Light Duty
Caster Wheel Shape
Crown
Caster Core Material
Polypropylene
Features
Floor Protection, Noise Reduction
Frame Finish
Zinc Plated
Swivel Raceway Type
Double Ball
Operating Temperature Range
-40 Degrees to 180 Degrees F
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Gray
Tread
Standard
Caster Mounting Type
Expanding Stem
Load Capacity
220 lb
ESD Conductive
No
System of Measurement
Inch
Tread Color
Gray
Series
P14 Series
Extended Lead
No
Caster Break Type
No Brake Included
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
Yes
Wheel/Tread Hardness
85-95 Shore A
Operating Temperature - Minimum
-40 Degrees F
Load Capacity - Maximum
220 lb
Compatible Wheel Manufacturer Model Number
P-RP-050X013/031K
Operating Temperature - Maximum
180 Degrees F

Description

Stem Caster, Swivel Caster, 220 lb Load Rating, 0 to 299 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 6 7/16 in Mounting Height, Ball, 1/2 In.-13 x 2-1/4 in Caster Stem Size, Expanding Adapter, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
