CAD Viewer & Download Files

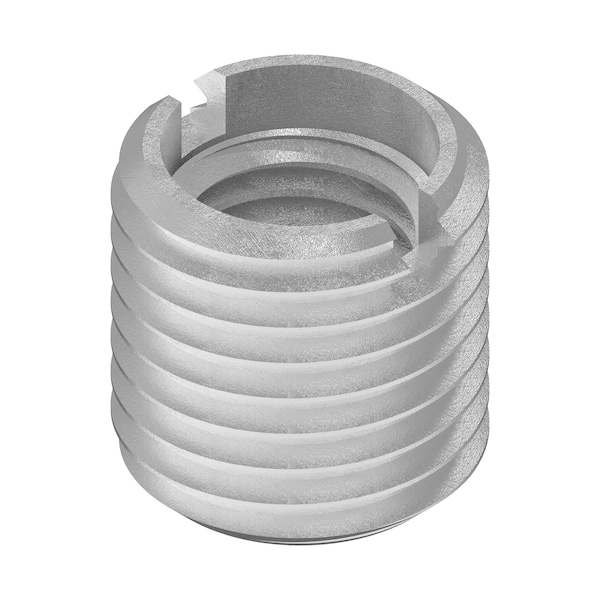

Thin Wall Self Locking Thread Insert, 5/16"-24 Int Thrd Sz, 18-8 Stainless Steel, 5 PK
Mfr # 313-524-PK5
Zoro # G409228293
CAD Available
product price: $14.99
/pk 5, $3.00/eaKey Features
CAD Drawing
Internal Thread Size
5/16"-24
Material
18-8 Stainless Steel
Overall Length
7/16 in
Insert Diameter
7/16 in
External Thread Size
7/16"-20
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
313-524-PK5
Zoro #
G409228293
UPC #
847554009864
Country of Origin
United States
Dimensions
Internal Thread Size
5/16"-24
Overall Length
7/16 in
Insert Diameter
7/16 in
External Thread Size
7/16"-20
Drill Bit Size
25/64 in
Minimum Installation Depth
1/2 in
Compatible Tap Size
7/16"-20
Maximum Hole Diameter
0.391 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 7/16 In.-20, Drill Bit Size 25/64, External Thread Fit 2A, External Thread Size 7/16 In.-20, Finish Plain, Insert Diameter 7/16 in, Internal Thread Fit 2B, Internal Thread Size 5/16 In.-24, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.391 in, Minimum Installation Depth 1/2 in, Overall Length 7/16 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Fine
