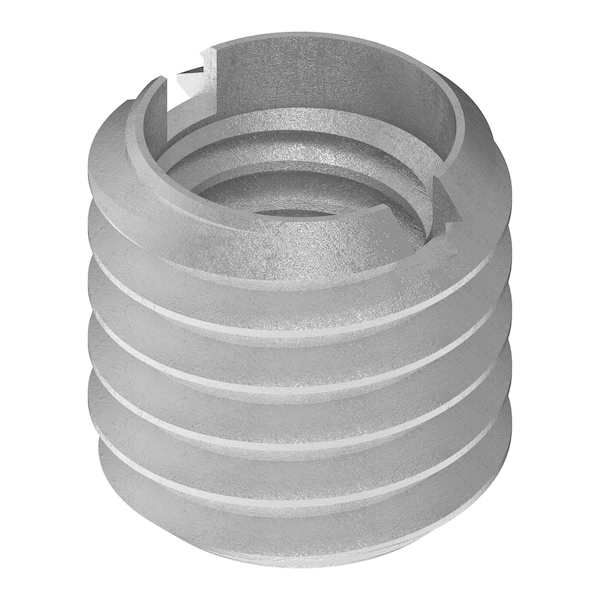

Thin Wall Self Locking Thread Insert, M8-1.25 Int Thrd Sz, Steel
Mfr # EZ-310-M8
Zoro # G109228333
CAD Available
product price: $62.65
/eaKey Features
CAD Drawing
Internal Thread Size
M8-1.25
Material
Steel
Overall Length
11 mm
Insert Diameter
7/16 in
External Thread Size
7/16"-14
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
EZ-310-M8
Zoro #
G109228333
UPC #
847554010624
Country of Origin
United States
Dimensions
Internal Thread Size
M8-1.25
Overall Length
11 mm
Insert Diameter
7/16 in
External Thread Size
7/16"-14
Drill Bit Size
X
Minimum Installation Depth
1/2 in
Compatible Tap Size
7/16"-14
Maximum Hole Diameter
0.397 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 7/16 In.-14, Drill Bit Size X, External Thread Fit 2A, External Thread Size 7/16 In.-14, Finish Black Phosphate, Insert Diameter 7/16 in, Internal Thread Fit 2B, Internal Thread Size M8-1.25, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.397 in, Minimum Installation Depth 1/2 in, Overall Length 11 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
