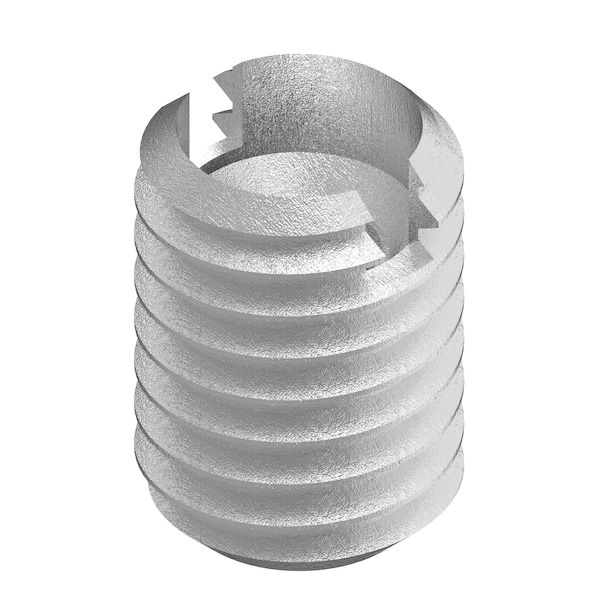

Thin Wall Self Locking Thread Insert, No. 6-32 Int Thrd Sz, 18-8 Stainless Steel, 5 PK
Mfr # 313-006-PK5
Zoro # G309228249
CAD Available
product price: $12.55
/pk 5, $2.51/eaKey Features
CAD Drawing
Internal Thread Size
#6-32
Material
18-8 Stainless Steel
Overall Length
9/32 in
Insert Diameter
7/32 in
External Thread Size
#12-28
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
313-006-PK5
Zoro #
G309228249
UPC #
847554009796
Country of Origin
United States
Dimensions
Internal Thread Size
#6-32
Overall Length
9/32 in
Insert Diameter
7/32 in
External Thread Size
#12-28
Drill Bit Size
#14
Minimum Installation Depth
11/32 in
Compatible Tap Size
#12-28
Maximum Hole Diameter
0.182 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size #12-28, Drill Bit Size #14, External Thread Fit 2A, External Thread Size #12-28, Finish Plain, Insert Diameter 7/32 in, Internal Thread Fit 2B, Internal Thread Size #6-32, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.182 in, Minimum Installation Depth 11/32 in, Overall Length 9/32 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Wall Type Thin Wall
