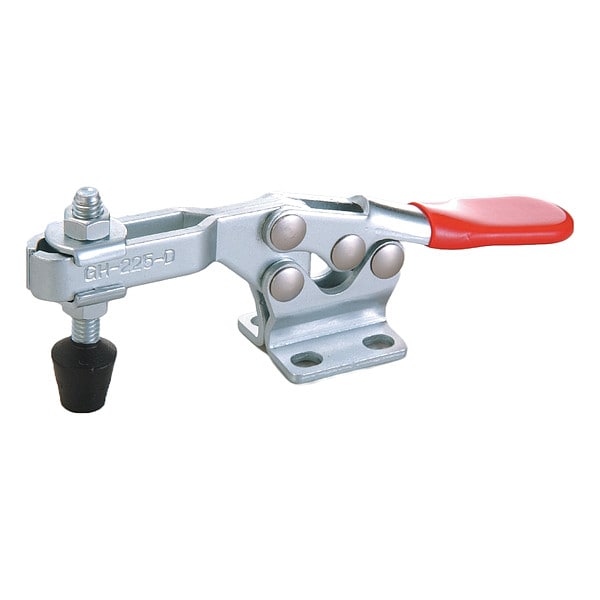

Toggle Clamp, Steel, Horizontal, 500 lbf
Mfr # 806ER9
Zoro # G210565822
product price:Â
$
9.89
/ea
Key Features
Body Material
Steel
Spindle Material
Steel
Height Under Arm
1.37 in
Handle Color
Red
Tip Diameter
0.47 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 806ER9
- Zoro #
- G210565822
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Toggle Clamp
- Body Material
- Steel
- Spindle Material
- Steel
- Handle Color
- Red
- Handle Material
- Plastic
- Application
- Assembly, Checking Fixtures, Closures, Woodworking
- Tip Material
- Neoprene
- Base Mounting Style
- Flange
- Includes Locking Handle
- No
- Clamp Arm Opening Angle
- 90 Degrees
- Includes
- (1) Spindle, (2) Flanged Washers, (2) Nuts
- Reflectivity
- Nonreflective
- Clamping Force
- 500 lb
- Accommodates Workpiece Variation
- No
- Mounting Holes Center to Center - Short Side
- 0.91 in
- Handle Orientation
- Horizontal
- Arm Style
- U-Bar
- Mounting Holes Center to Center - Long Side
- 0.98 in
- Holding Capacity - Maximum
- 500 lbf
Description
Toggle Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Holding Capacity - Maximum 500 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 90 Degrees , Arm Length 2.82 in, Height Under Arm 1.37 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Closures, Woodworking, Body Material Steel, Clamping Force 500 lb, Fastener Thread Size 1/4 in (orM6), Handle Color Red, Handle Material Plastic
